The online nitrate analyzer is an online water quality monitoring device. This device detects nitrate concentration through ion-selective electrode technology and employs advanced technology to achieve pre-calibration of the electrodes and dynamic compensation for pH and temperature interference. It is mainly applied in the monitoring of nitrification and denitrification processes in the activated sludge process of wastewater treatment plants, as well as in the field of industrial wastewater discharge supervision.

Product Features

✅Digital sensor, RS485 output and 4-20mA output.

✅No reagents required, no pollution, more economical and environmentally friendly.

✅Real-time reflection of changes in nitrate concentration in the water body.

✅With high and low limit alarm function.

✅Strong anti-interference ability and low maintenance cost.

Technical parameters

Name	Online Nitrate sensor
Warranty	1 year
Principle	Ion electrode method
Range	0-100mg/L or 0-1000mg/L
Accuracy	±5%FS
Resolution	0.01mg/L

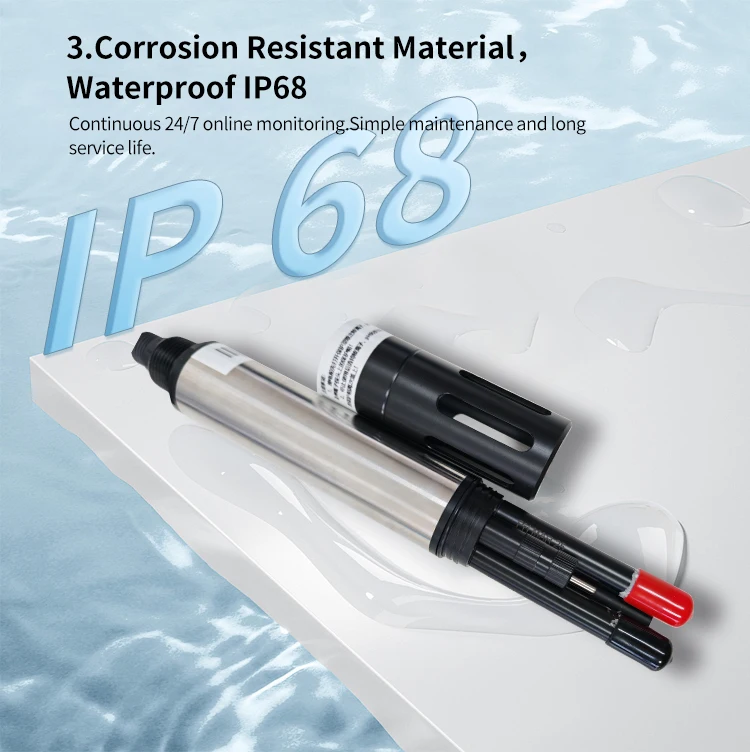

Protection Level	IP68
Working pressure	1 bar

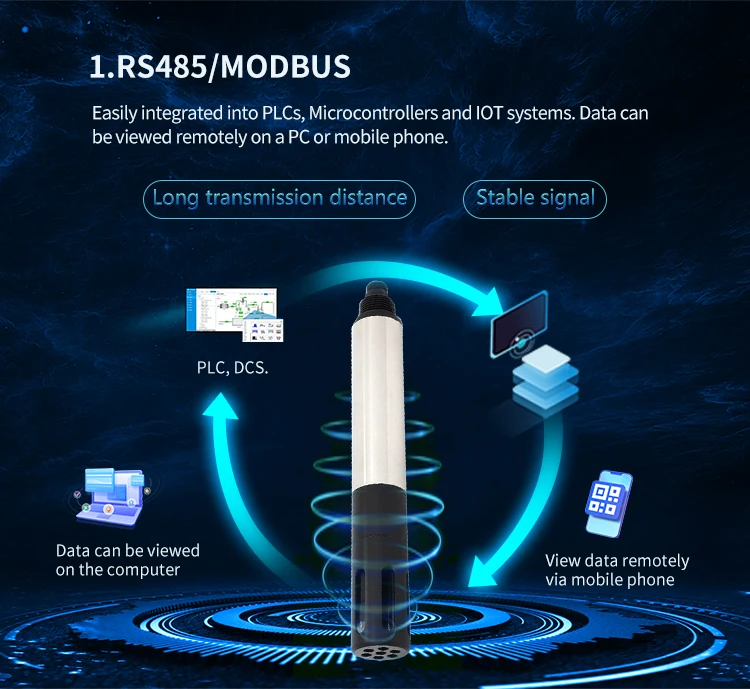

Output Signal	Support RS-485/Modbus protocol
Operating Temp.	0-50℃

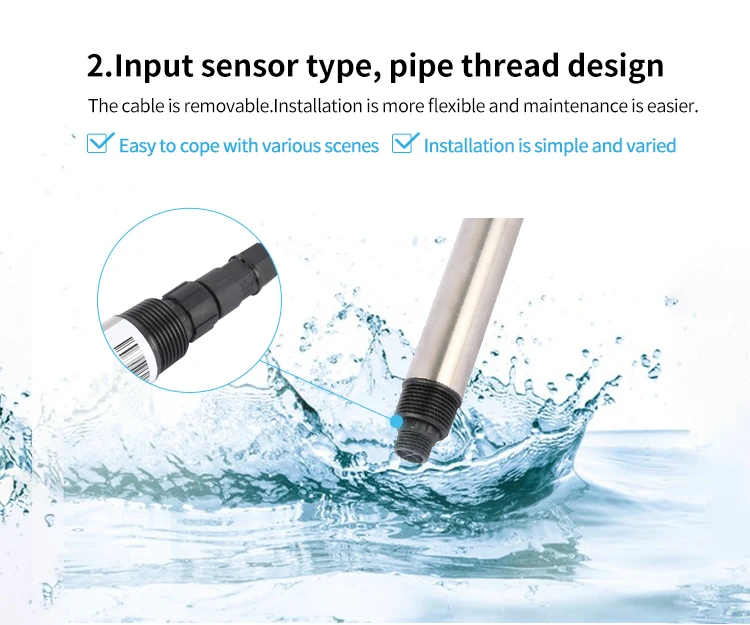

Installation method	Input Type/flow-through type
Power Supply	AC 220V
Cable Length	5 meters (default),Customizable
Housing Material	POM+316L
Size	Φ36*265

Application Areas

✅Wastewater treatment plant: In wastewater treatment plants, the ion electrode method nitrate analyzer is used to monitor the nitrate nitrogen concentration in aeration, biochemical and denitrification tanks. Through real-time monitoring, it can dynamically adjust the carbon source dosage, aeration intensity and sludge reflux ratio to improve nitrogen removal efficiency and reduce energy consumption.12 In addition, the instrument is also used in the short-range nitrification-anaerobic ammonia oxidation (PN/A) process to optimize the reaction conditions and reduce energy consumption.

✅Industrial circulating water systems: In industrial circulating water systems and boiler make-up water, the Ion Electrode Nitrate Analyzer is used to monitor nitrate-nitrogen concentrations and prevent corrosion of equipment, especially to control the synergistic corrosion rate of chloride ions and nitrate-nitrogen.

✅Environmental monitoring: the instrument is also widely used in surface water and irrigation water monitoring to prevent soil nodulation or eutrophication of water bodies.

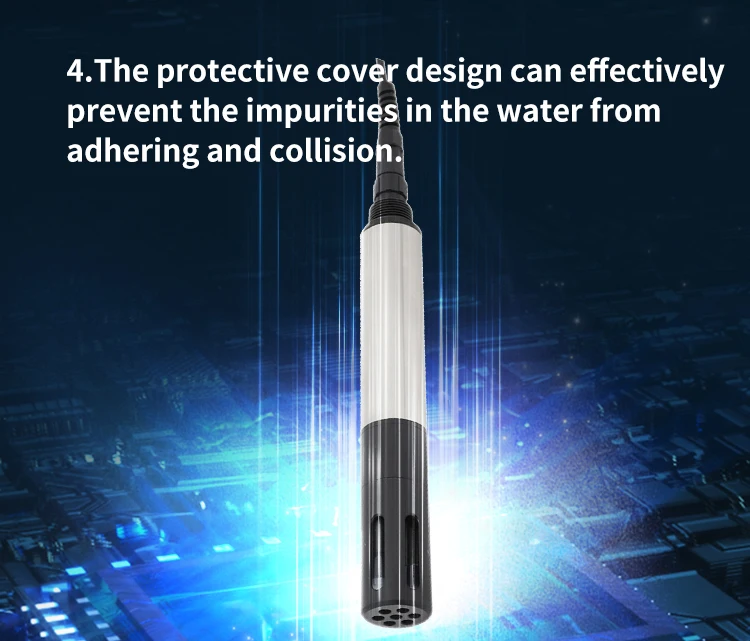

Product Advantages
