The conductivity Analyzer is an on-line instrument used to measure the conductivity of a solution. The device typically works by converting the resistance between the electrodes of a conductivity sensor into an electrical signal that is easy to read and analyse. Online Conductivity Analyzer Matched with a four-electrode conductivity (salinity) sensor, the online conductivity sensor employs advanced technology to provide more accurate and stable measurements than traditional two-electrode sensors. It adopts RS485 digital interface and supports MODBUS protocol, which is suitable for a variety of applications such as water treatment, environmental monitoring and industrial processes.

Product Features

✅Real-time monitoring: The device provides continuous, real-time conductivity measurements.

✅Automatic temperature compensation: ensures accurate readings despite temperature fluctuations.

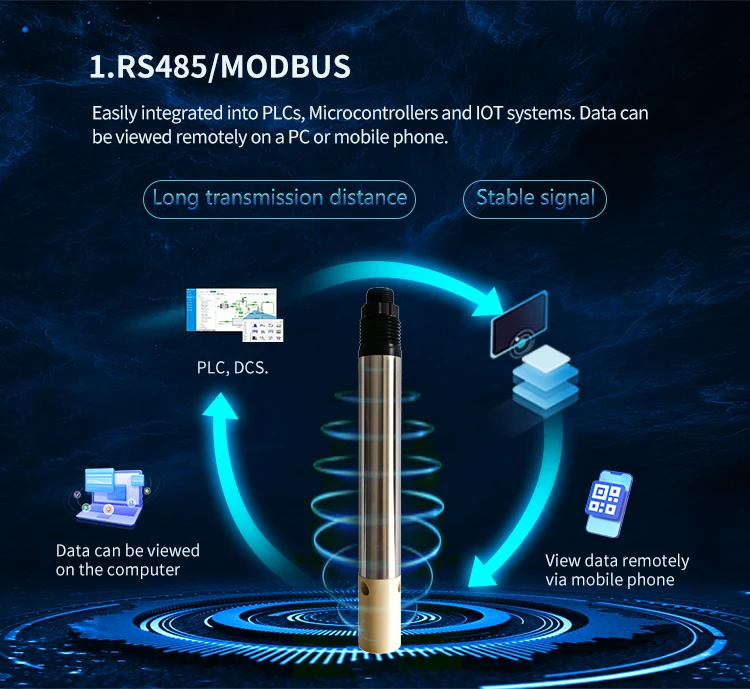

✅Digital communication: Standard MODBUS RS485 communication function allows real-time transmission of measured values.

✅User Friendly: Simple operation interface, reliable system, low maintenance cost.

✅Rugged design: Conductivity transmitters are typically designed to withstand harsh industrial environments, ensuring durability and reliability.

✅Plug and play, easy to operate.

Technical parameters

Name	Online Conductivity Analyzer
Model	YCH246
Principle	4-electrode
Range	0-300mS/cm
Accuracy	±5%FS
Resolution	0.01mS/cm
Linearity	R2 > 0.99

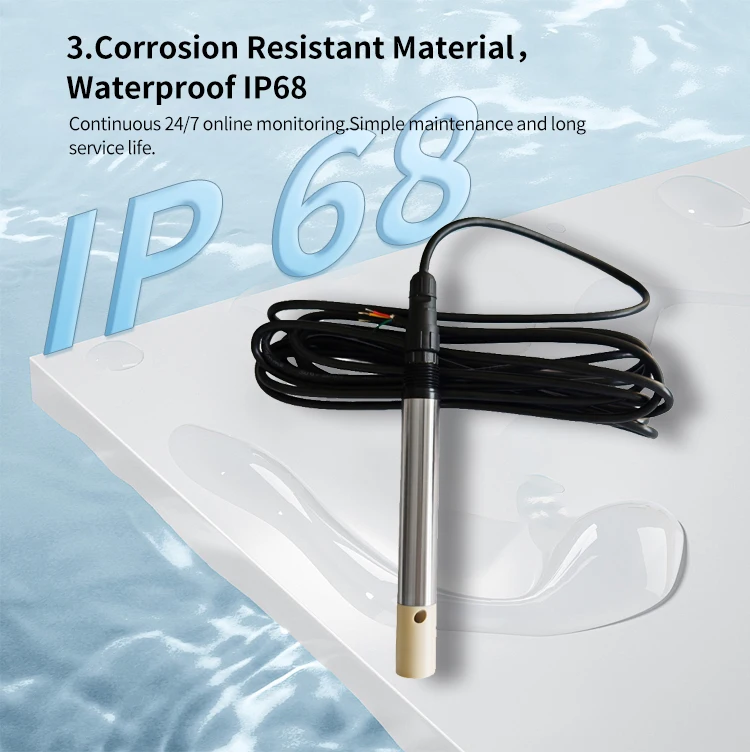

Protection Level	IP68
Output Signal	Support RS-485/4-20mA
Operating Temp.	0-50℃

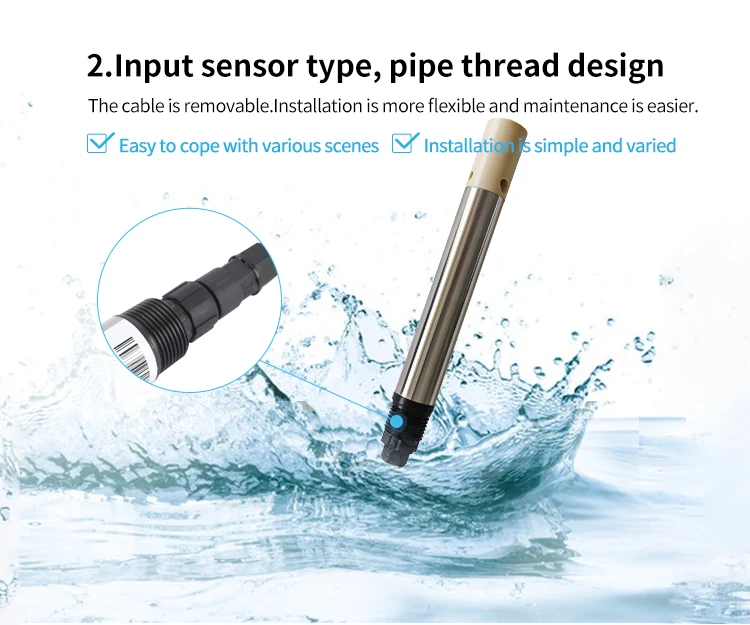

Sensor Installation	Immersion mode
Power Supply	AC 220V
Cable Length	5 meters (default),Customizable
Housing Material	316L/Titanium
Dimension	Φ22*165mm

Product Advantages
