Self cleaning dissolved oxygen sensor adopts the internationally leading fluorescence technology, which is based on the physics principle of quenching of active fluorescence by specific substances. The significant advantages of this fluorescence method of measuring dissolved oxygen are that it does not consume oxygen, has no flow limitation, does not require preheating of the electrolyte, and requires no maintenance and frequent calibration. It is also unaffected by hydrogen sulfide interference and offers excellent accuracy and stability.

Product Features

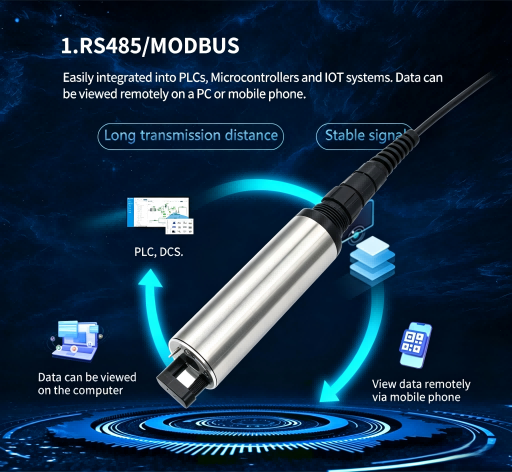

✅Digital output, support RS485 / MODBUS.

✅No membrane，No electrolyte, No chemical  interference, No frequent calibration required. No oxygen consumption, No flow dependent.

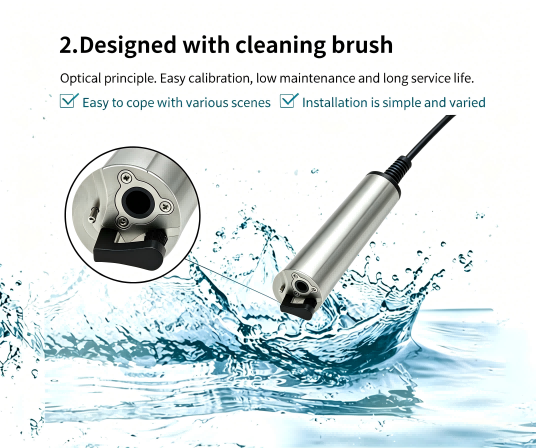

✅With self-cleaning brush,Prevents microbial adhesion for longer maintenance intervals.

✅High durability,wide range of applications.

Technical parameter

Name	Self cleaning Dissolved Oxygen Sensor
Model	YCH282
Principle	Fluorescence method
Range	0-50mg/L or 500% saturation
Accuracy	0-20mg/L:±1%或±0.2mg/L >20mg/L: ±5%或±0.6mg/L
Resolution	0.01mg/L
Dimension	Φ48*197mm
Working pressure	3 bar
Output Signal	Support RS-485/Modbus protocol
Operating Temp.	0-50℃
Assembly	Input Type
Power Supply	DC 9-24V,0.1W, current < 50mA
Cable Length	5 meters (default),Customizable
Housing Material	Titanium alloy

Product Advantages
