Self-cleaning online ammonia sensor requires no reagents, green and pollution-free, real-time online monitoring. Standard ammonium ion electrode, pH electrode and reference electrode (potassium ion optional), in the process of measuring ammonia and nitrogen in the water body, automatic pH and temperature compensation, so that the measurement value is more accurate. The sensor can be installed directly, compared with the traditional ammonia analyser, more economical and environmentally friendly, convenient and quick. The sensor is equipped with a self-cleaning brush, which prevents microbial adhesion and allows for longer maintenance intervals and excellent reliability.

Product Features

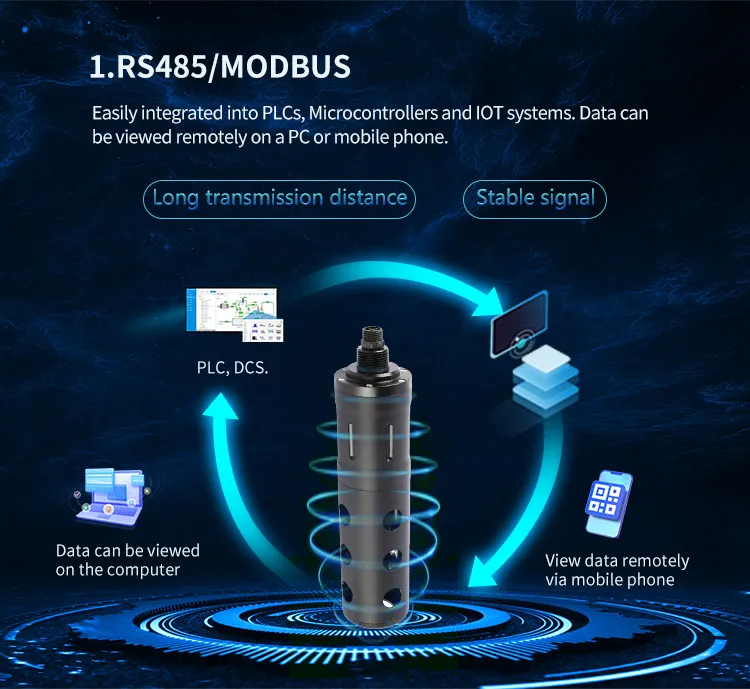

✅Digital sensor, RS485 output, MODBUS protocol.

✅No reagents required, no pollution, more economical and environmentally friendly.

✅Electrodes are field replaceable for easy operation and maintenance.

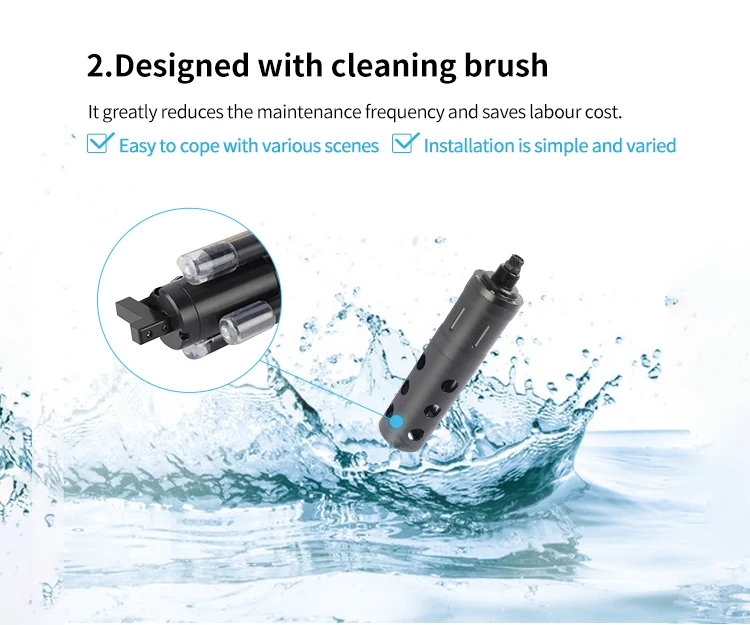

✅With self-cleaning brush to prevent microbial adhesion for longer maintenance intervals.

✅Built-in calibration parameters, accurately calibrated before delivery, ready for direct installation and use.

Technical parameter

Name	Self cleaning NH4+ Ammonium sensor
Model	YCH254
Principle	Ion electrode method
NH4-N Range	0-100mg/L (0-1000mg/L Optional)
NH4-N Accuracy	±5%FS
NH4-N Resolution	0.01mg/L
pH Range	4-10

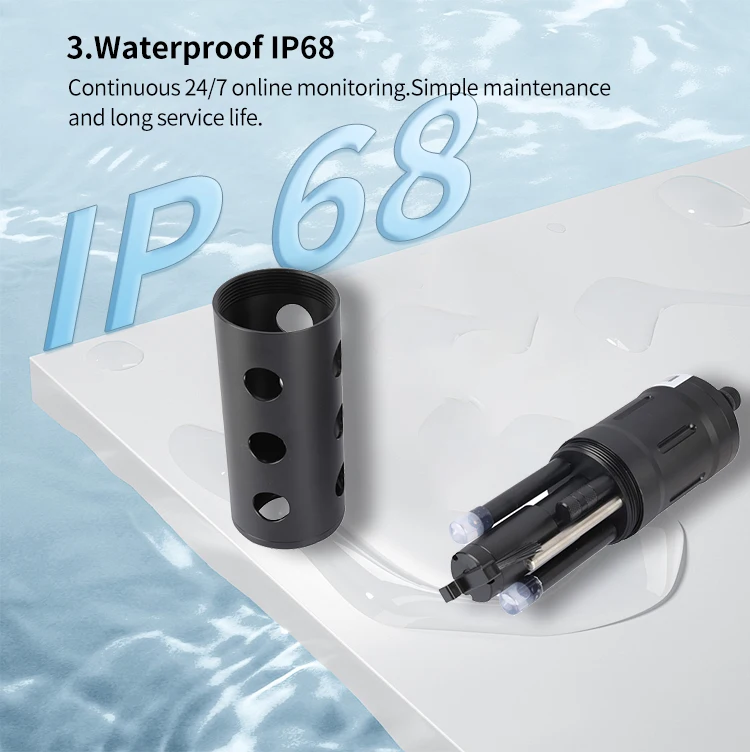

Protection Level	IP68
Working pressure	1 bar
Output Signal	Support RS-485/Modbus protocol
Operating Temp.	0-50℃
Assembly	Input Type
Power Supply	DC 9~24V
Dimension	Φ64*271mm
Cable Length	5 meters (default),Customizable
Housing Material	POM

Product Advantages
