Online Turbidity sensor
Key specifications:
✅Range 0-1000NTU(Customisable)
✅RS485,MODBUS protocol
✅90° light scattering method
✅Easy on-site use
✅Self-cleaning system
Online turbidity sensor adopts 90°scattering method.It's small, easy to install and maintain, not easy to be interfered by ambient light, with better repeatability and stability.The sensor is equipped with an auto-cleaning brush, which effectively eliminates the influence of air bubbles and contamination on the measurement, resulting in longer maintenance intervals and excellent stability over long periods of on-line use.
Product Features

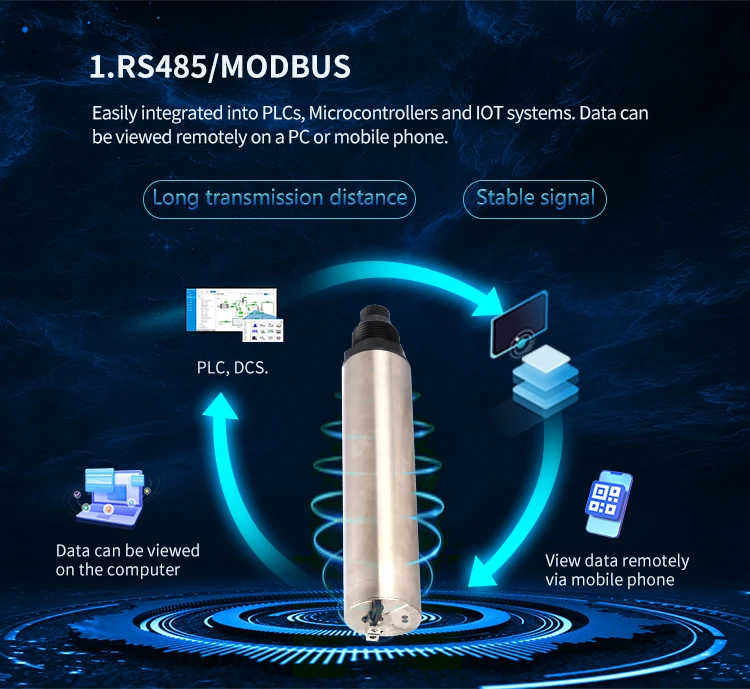

✅Digital Sensor, RS485 output, standard MODBUS protocol.
✅No electrolyte required, strong anti-interference, no frequent calibration.

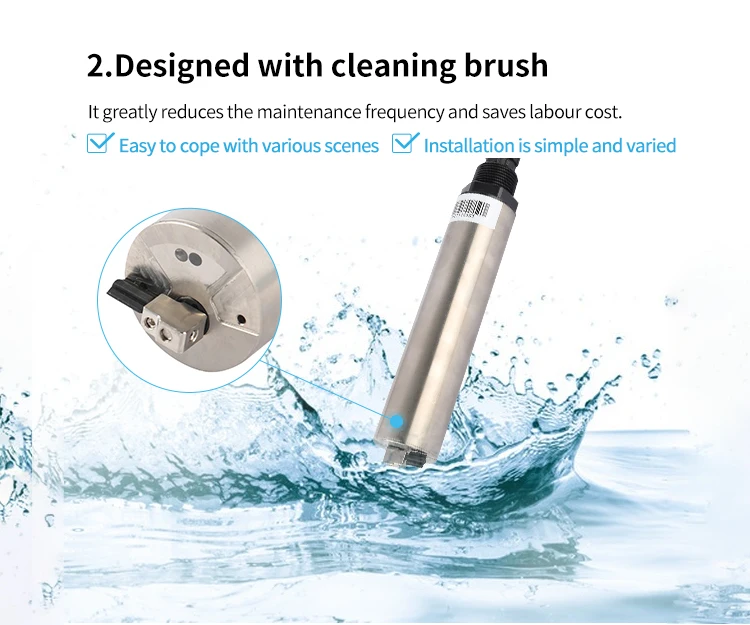

✅With a cleaning brush to prevent microorganisms from attaching and has a long maintenance cycle.
✅90° scattering method,high stability.
✅Built-in calibration parameters, accurately calibrated before delivery, ready for direct installation and use.
Technical parameter
| Name | Self-cleaning Turbidity Sensor |
| Model | YCH335 |
| Principle | 90° light scattering method |
| Range | 0-1000NTU or 0-4000NTU |
| Accuracy | ±5%FS |
| Resolution | 0.01NTU |
| Linearity | R2 > 0.99 |

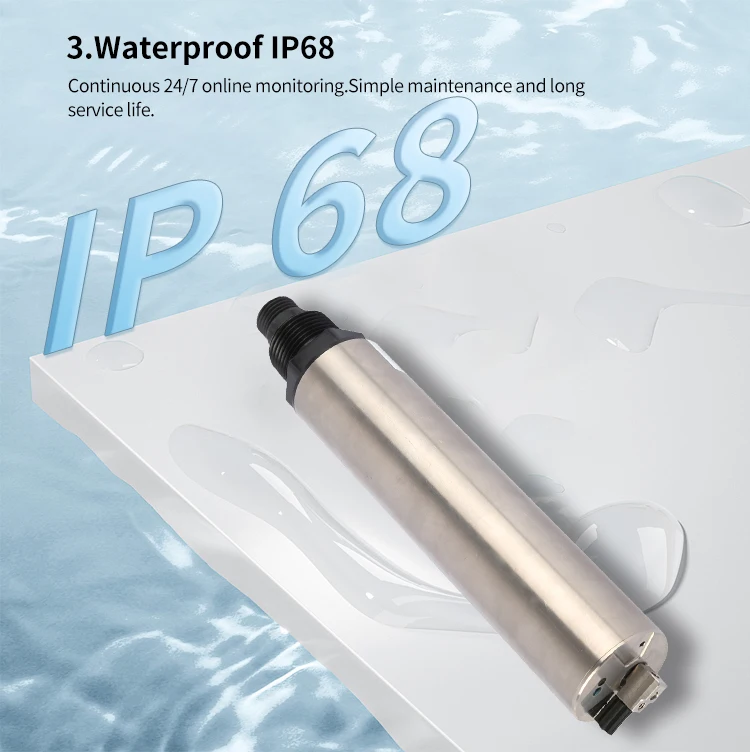

| Protection Level | IP68 |
| Working pressure | 3 bar |
| Output Signal | Support RS-485/Modbus protocol |
| Operating Temp. | 0-50℃ |
| Assembly | Input Type |
| Power Supply | DC 12V, current < 50mA |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | Titanium alloy |
