Online Turbidity Analyzer
Key Specifications：
✅Range 0-1000NTU(Customisable)
✅RS485/4-20mA output
✅90° light scattering method
✅Plug and play easy to operate
✅High and low limit alarms
✅Relay output
The online turbidity analyzer is a precise measuring instrument based on optical principles, mainly used for measuring the turbidity of raw water or pure water. Its working principle is to allow an infrared light source to pass through an optical lens and penetrate the sample liquid, measuring the intensity of the scattered light at a 90° angle, thereby calculating the turbidity of the water sample. The online turbidity analyzer is equipped with a microprocessor and has advanced configuration and powerful functions, suitable for various environments and application scenarios.
Product Features
✅No electrolyte required, strong anti-interference, no frequent calibration.
✅90° scattering method, in line with ISO7027 international standard.

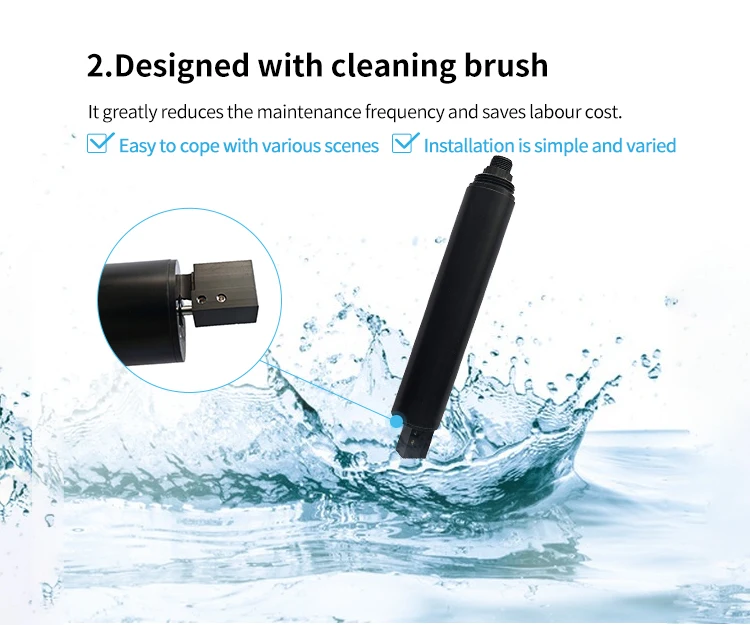

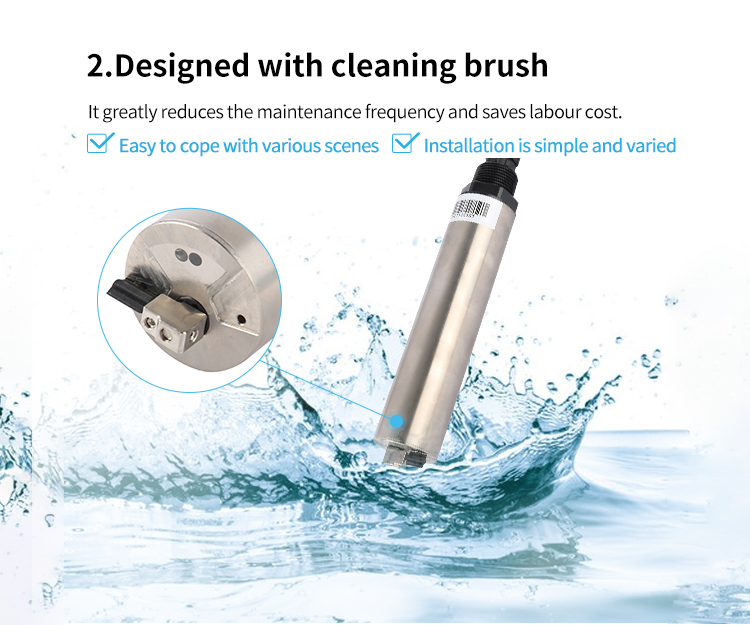

✅With a cleaning brush to prevent microorganisms from attaching and has a long maintenance cycle.
✅Automatic Sensor Identification
✅Online real-time monitoring，plug and play easy to operate
Technical parameters
| Name | Online Turbidity Analyzer |
| Principle | 90° light scattering method |
| Range | 0-1000NTU or 0-4000NTU |
| Accuracy | ±5%FS |
| Resolution | 0.01NTU |
| Linearity | R2 > 0.99 |

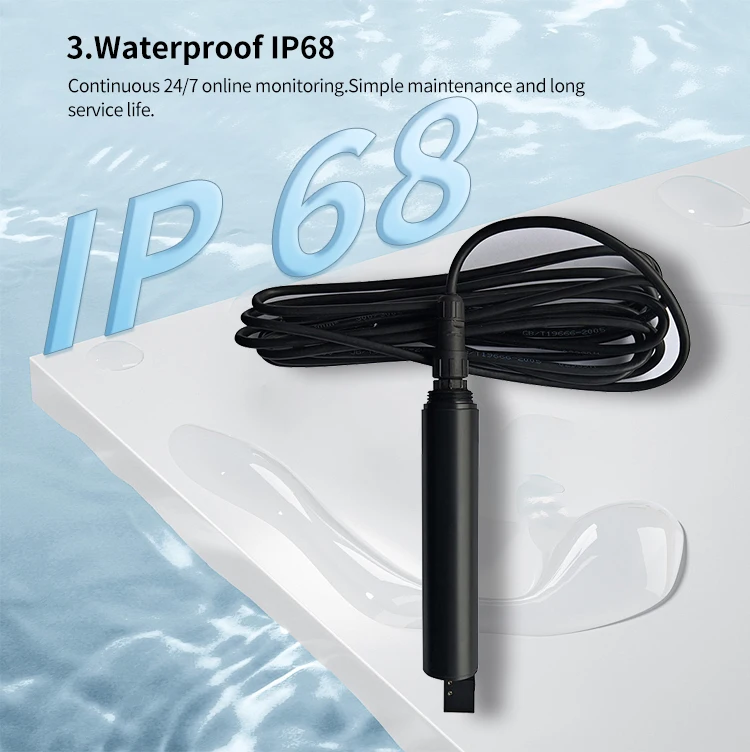

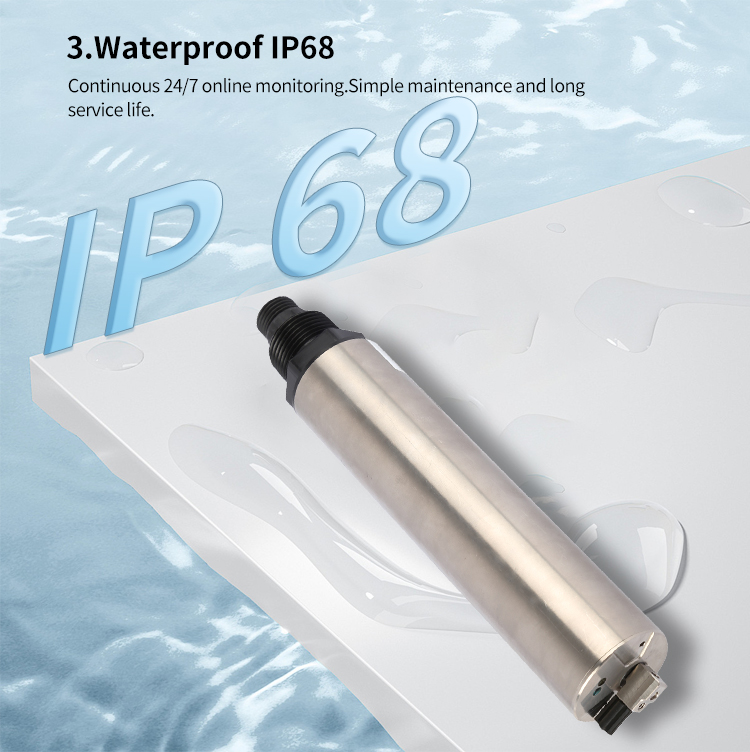

| Protection Level | IP68 |
| Working pressure | 3 bar |

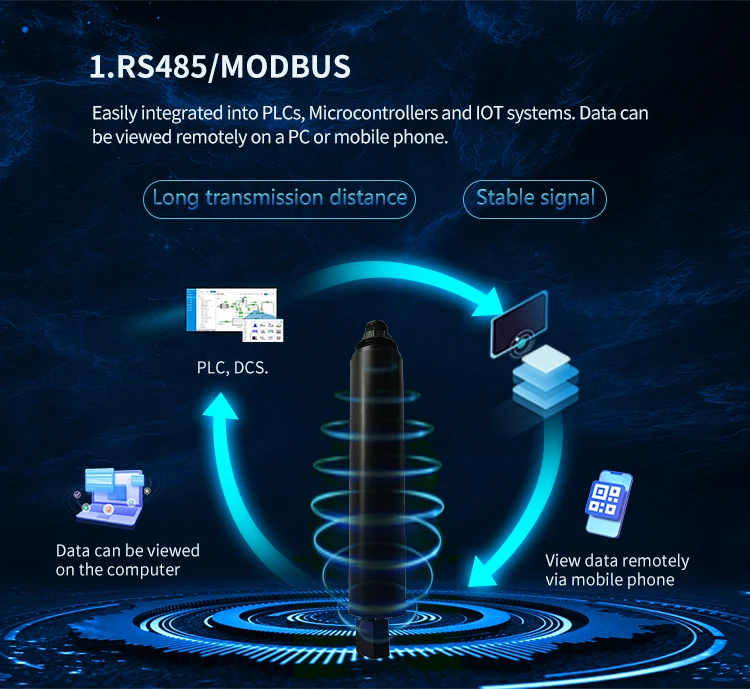

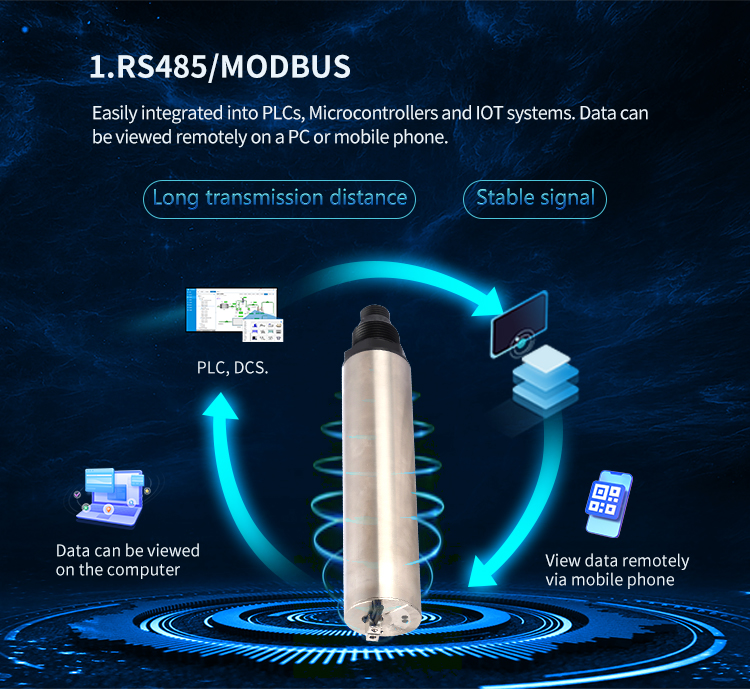

| Output Signal | Support RS-485/Modbus protocol |
| Operating Temp. | 0-50℃ |

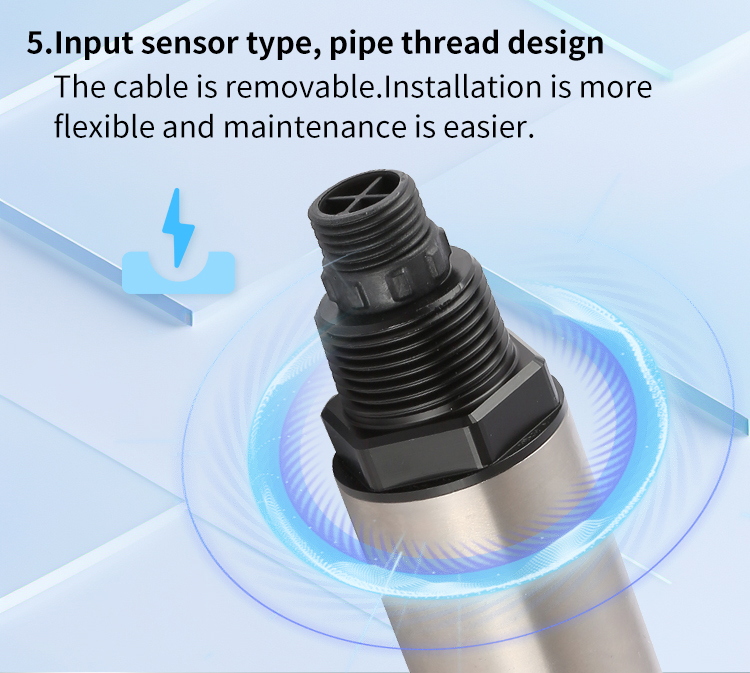

| Assembly | Input Type |
| Power Supply | AC 220V |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | POM/Titanium alloy |
Product Advantages
