Online TOC Analyzer
Key Specifications：
✅Range 0-500mg/L(Customisable)
✅RS485/4-20AM output
✅Ultraviolet absorption method
✅Plug and play easy to operate
✅High and low limit alarms relay output
Online The TOC analyzer is a device for continuous monitoring of total organic carbon in water. The principle of operation is based on the UV absorption method. This method utilises the characteristic absorption bands of organic matter in the UV region to determine the TOC value of water by measuring the degree of absorption of a water sample of a specific wavelength of UV light. Specifically, when UV light passes through the water sample, the organic matter in the water absorbs a certain amount of UV light, which results in a weakening of the intensity of the UV light passing through the water sample. The intensity of the light passing through the water sample decreases. The absorption of light is directly proportional to the concentration of organic matter in the solution, so the TOC value can be calculated by measuring the degree of light absorption. The sensor converts the light signal into an electrical signal and transmits it to the data processing system. The data processing system calculates the TOC value of the water sample based on the preset calibration curve and the measurement data, and displays or outputs it digitally.
Product Features
✅No reagents, no pollution, more economical and environmentally friendly.
✅Can measure parameters such as TOC, COD,turbidity and temperature.
✅Automatically compensate for turbidity interference.

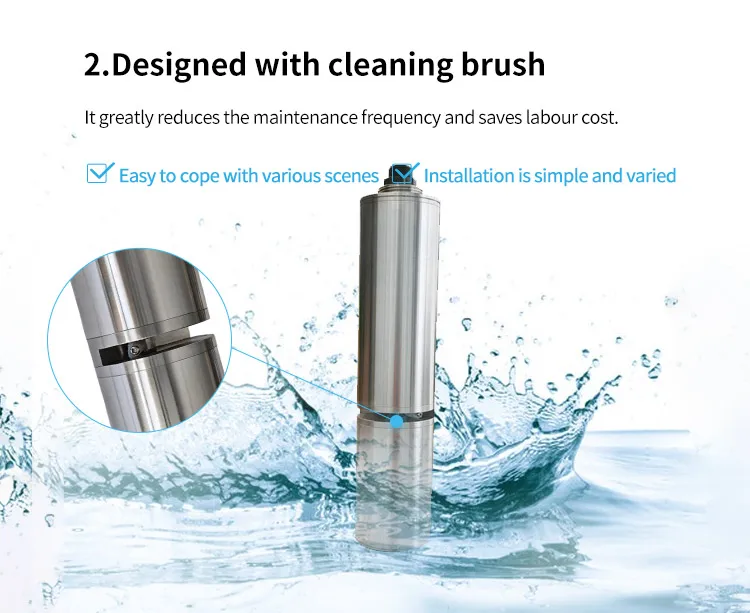

✅With automatic cleaning brush to prevent biological attachment and longer maintenance cycle.

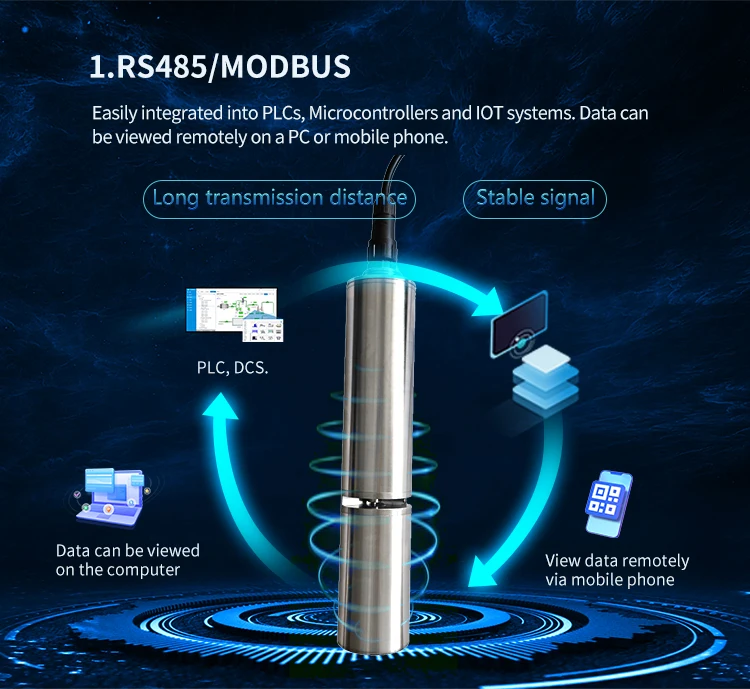

✅RS485 output and 4-20mA output. With high and low limit alarm function.
✅Plug and play, easy to operate.
Technical parameters
| Name | Online TOC Analyzer |
| Model | YCH306 |
| Principle | Ultraviolet absorption method |
| Range | 0-500mg/L(Support for customisation,Max 0-3000mg/L) |
| Accuracy | ±5%FS |
| Resolution | 0.01mg/L |
| Linearity | R2 > 0.99 |

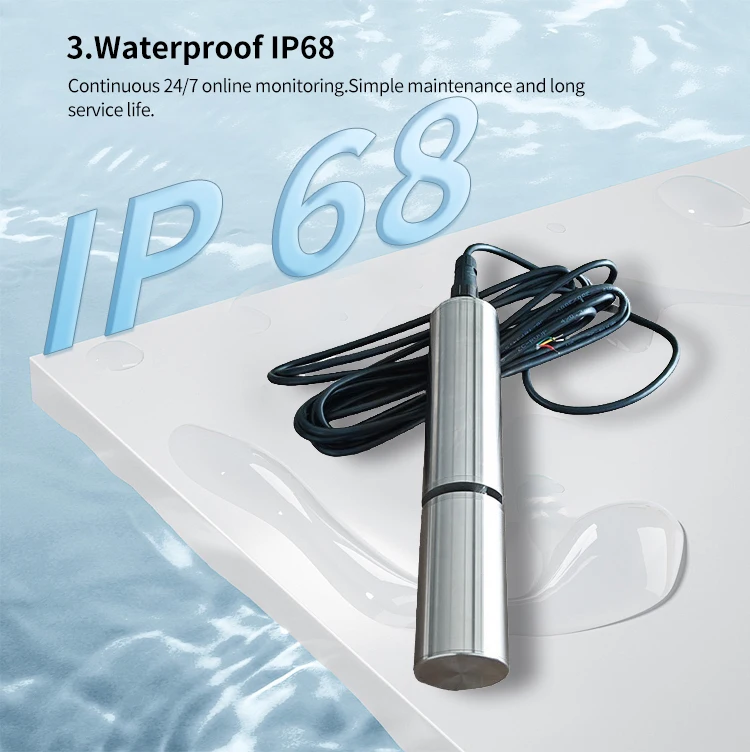

| Protection Level | IP68 |
| Output Signal | Support RS-485/Modbus protocol,4-20mA |
| Operating Temp. | 0-50℃ |
| Sensor Installation | Immersion mode |
| Power Supply | AC 220V |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | 316L/Titanium |
| Dimension | Φ46*227mm |
Product Advantages
