Online Salinity Analyzer
Key Specifications：
✅Range 0-100ppt
✅RS485/4-20mA output
✅Four-electrode technology
✅Plug and play easy to operate
✅High and low limit alarms
✅Relay output
Online salinity analyzer is an advanced device for measuring salinity of water bodies. It determines the salinity level of a water body by measuring the ability of current conduction in the water body, thus real-time monitoring and analyzing of water quality can be achieved. This technology not only accurately measures salinity in seawater, but is also suitable for monitoring mixed systems of fresh and salt water.
Product Features
✅Plug and play easy to operate.
✅High-precision measurement to ensure stable and accurate results.
✅RS485 output and 4-20mA output.
✅With high degree of automation, data recording and storage convenient feature.
✅Waterproof and dustproof design, suitable for outdoor use.
Technical parameters
| Name | Online Salinity Analyzer |
| Principle | 4-electrode |
| Range | 0-100ppt |
| Accuracy | ±5%FS |
| Resolution | 0.01mppt |
| Linearity | R2 > 0.99 |

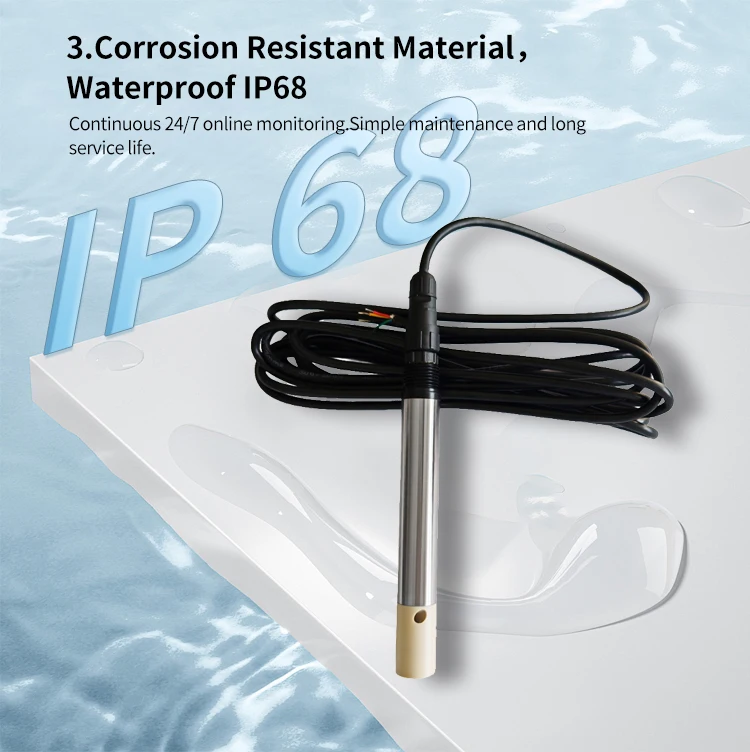

| Protection Level | IP68 |

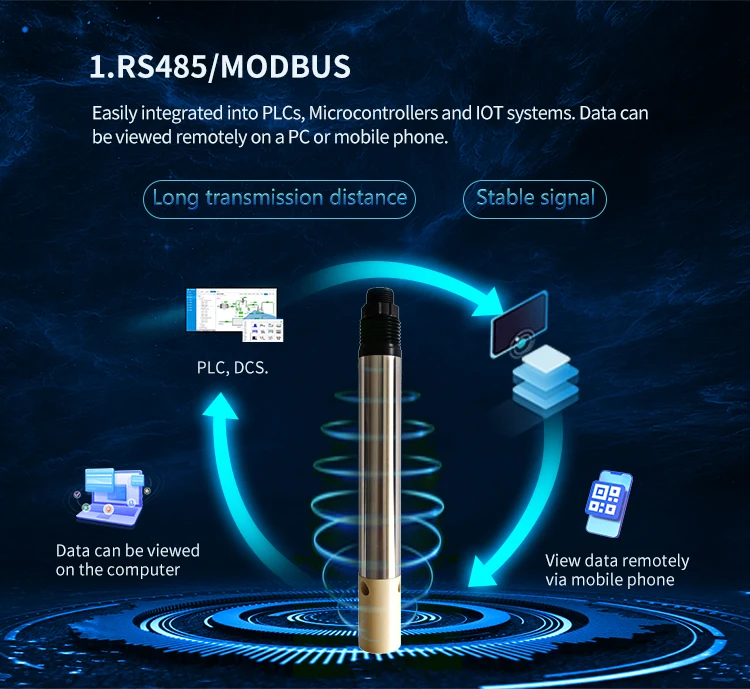

| Output Signal | Support RS-485/4-20MA |
| Operating Temp. | 0-50℃ |

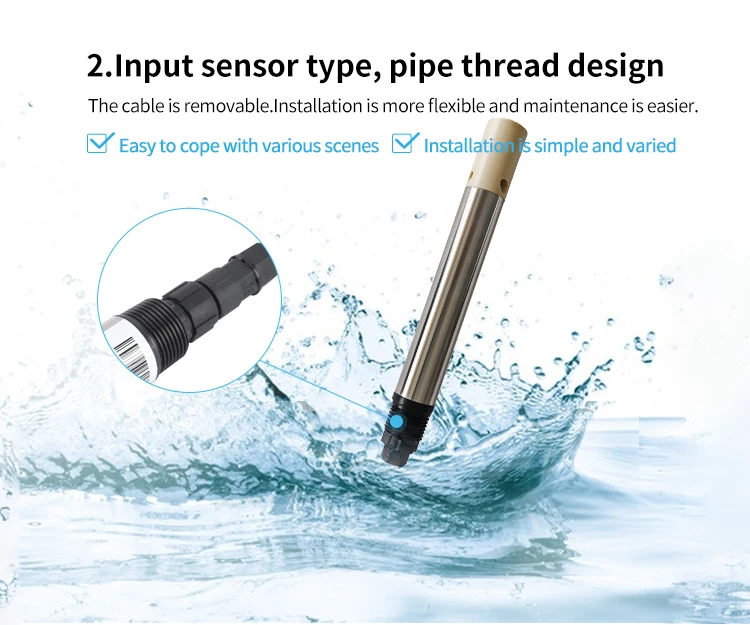

| Sensor Installation | Immersion mode |
| Power Supply | AC 220V |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | 316L/Titanium |
| Dimension | Φ22*165mm |
Product Advantages
