Online pH sensor
Key specifications:
✅Range 0-14
✅RS485,MODBUS protocol
✅Glass electrode method
✅Easy on-site use
✅Online real-time monitoring
The pH sensor consists of a glass electrode and a reference electrode, in which the glass electrode has special electrochemical characteristics and measures pH by sensing the concentration of hydrogen ions in the solution. Built-in temperature sensor with automatic temperature compensation, suitable for long-term online monitoring environment, support a variety of terminal networks, widely used in water quality treatment, hydrological monitoring, wastewater treatment, aquaculture, swimming pools, industrial control, biology and other fields.
Product Features

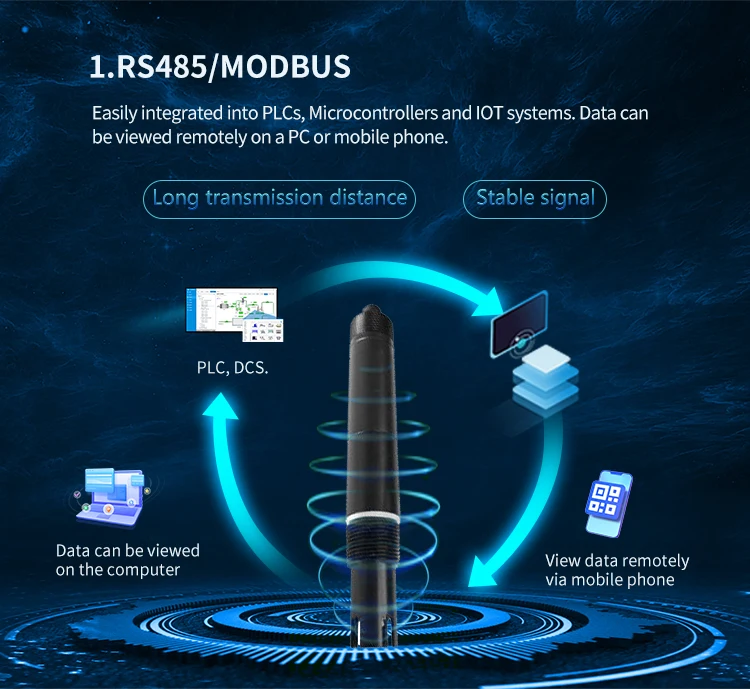

- Digital Sensor,RS485 output, standard MODBUS protocol.
- No electrolyte required, strong anti-interference, no frequent calibration.
- Adopt high-performance industrial online electrodes that can operate reliably for extended periods.
- Built-in calibration parameters, accurate calibration before delivery, ready for direct installation and use.
Technical parameters
| Name | Online pH Sensor |
| Model | YCH205 |
| Principle | Glass electrode method |
| Range | 0-14 |
| Accuracy | 0.1 |
| Response time | ＜30s |
| Dimension | φ27*188 |

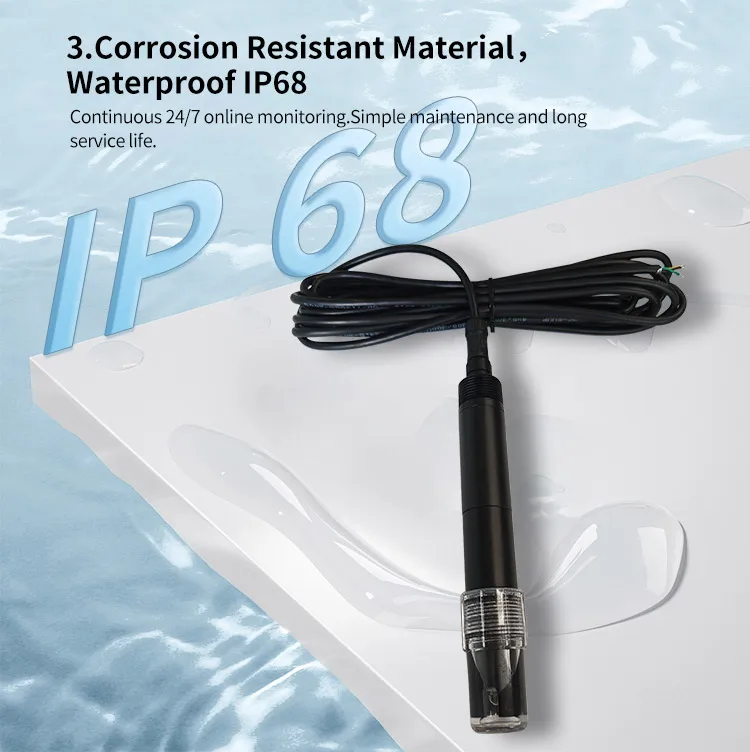

| Protection Level | IP68 |
| Working pressure | 1 bar |
| Output Signal | Support RS-485/Modbus protocol |
| Operating Temperature | 0-50℃ |
| Assembly | Input Type |
| Power Supply | DC 12V, current < 30mA |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | POM |
Critical Application Scenarios
✅Wastewater Treatment Plants
Monitor neutralization tanks to optimize chemical dosing (e.g., H₂SO₄/NaOH), reducing reagent costs by 25%.
Compliance assurance for effluent discharge (EPA pH 6-9 standards).
✅Pharmaceutical & Biotechnology
Precision control in fermentation bioreactors (±0.05 pH accuracy).
CIP/SIP compatibility with hygienic tri-clamp fittings for FDA cGMP compliance.
✅Chemical Manufacturing
Corrosive media handling (HF-resistant glass electrodes for ≤40% hydrofluoric acid).
Leak detection via pH spikes in cooling water loops.
✅Food & Beverage Production
Dairy pasteurization pH tracking (error-proofing product quality).
Sanitary design with 3-A certification, preventing bacterial harborage.
✅Mining & Metallurgy
Leaching process control in heap tanks (pH 1.5-3.5).
Abrasion-resistant ceramic junctions for slurry applications.
Product Advantages
