Digital  ORP  sensor,  which  calculates  redox  reactions  by  measuring  the  potential difference between the electrode and the reference electrode. Built-in temperature sensor, automatic temperature compensation. Independent of the transmission distance, suitable for online long-term monitoring environment.

Product Features

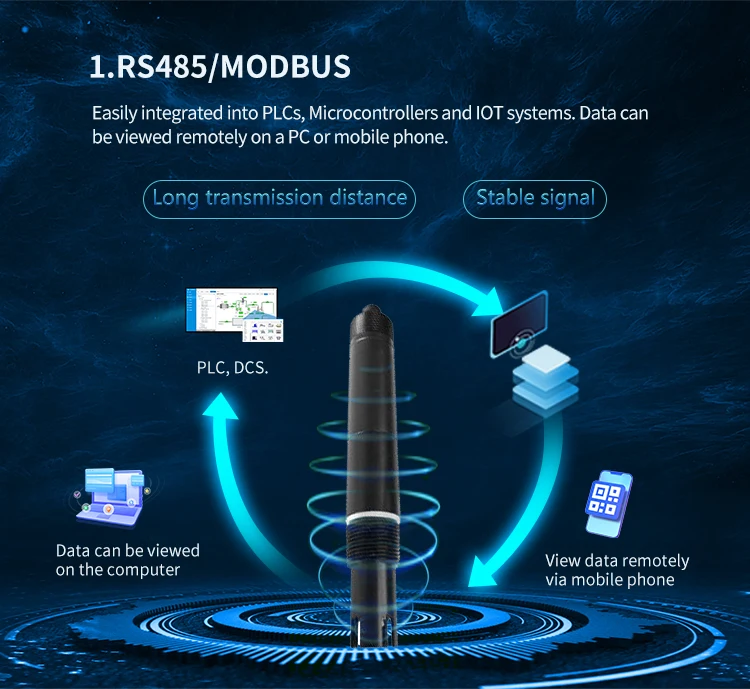

✅Digital sensor, RS-485 output, MODBUS support;

✅Composite electrode technology, strong stability;

✅Strong anti-interference ability, the electrode can be replaced separately;

✅Can be on-line continuous monitoring, real-time control of water quality dynamics;

Technical parameter

Name	Digital ORP Sensor
Model	YCH206
Principle	Glass electrode method
Range	-999~999mV
Accuracy	±10mV
Response time	＜30s
Dimension	φ27*188

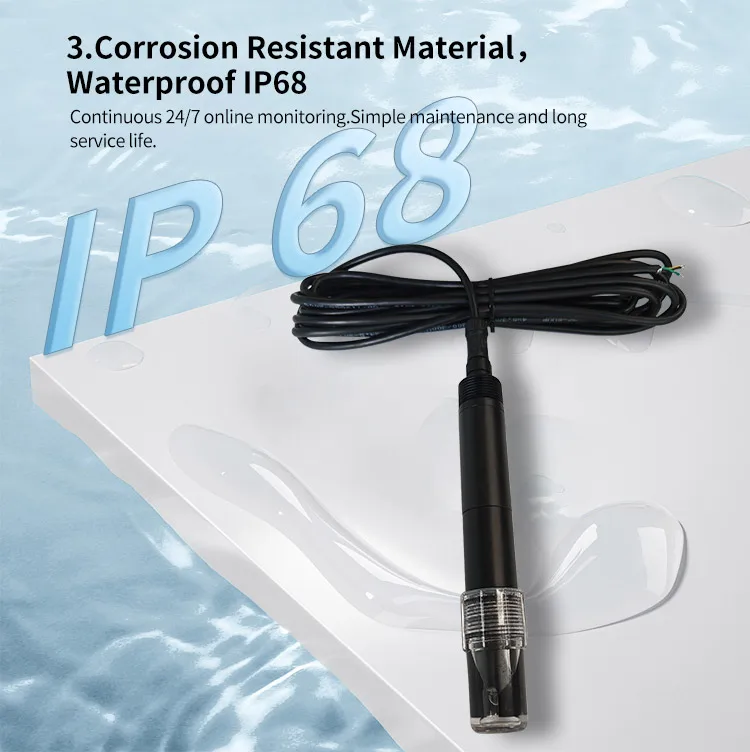

Protection Level	IP68
Working pressure	1 bar
Output Signal	Support RS-485/Modbus protocol
Operating Temp.	0-50℃

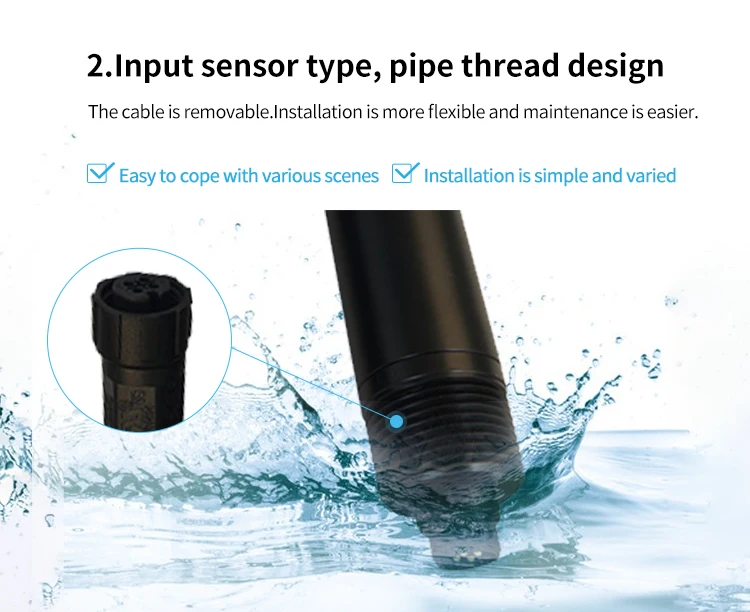

Installation method	Input type/flow-through type
Power Supply	DC 12V, current < 30mA
Cable Length	5 meters (default),Customizable
Housing Material	POM

Product Advantages
