Online Oil in Water Analyzer
Key Specifications：
✅Range 0-150ppm(Customisable)

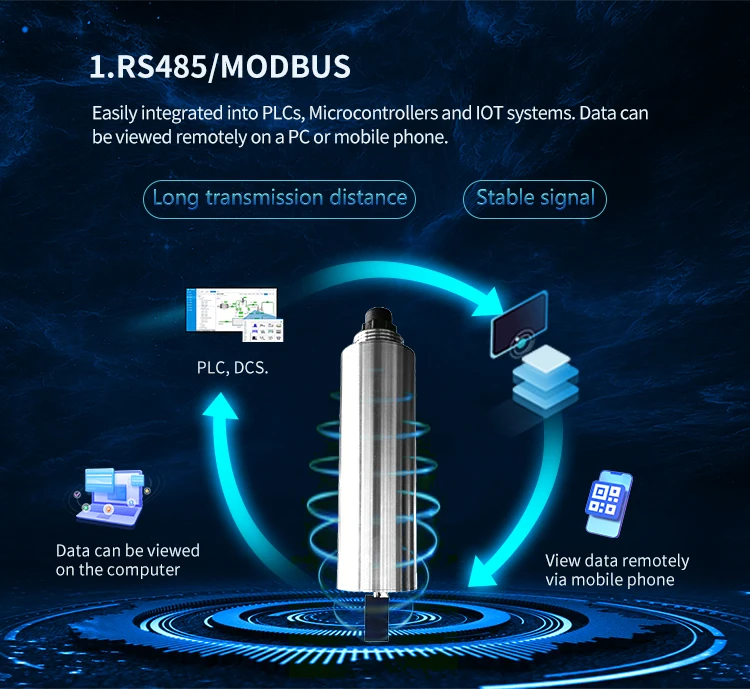

✅RS485/4-20AM output
✅Ultraviolet fluorescence method
✅Plug and play easy to operate
✅High and low limit alarms relay output
Online oil in water analyzer is a device used for real-time monitoring of the concentration of oil pollutants in water. It can continuously and automatically detect the content of oil substances in the water body and provide data support, helping to take timely measures to prevent further pollution of the environment by oil spills.
✅No reagents, no pollution, more economical and environmentally friendly.
✅Online oil-in-water analyzer using ultraviolet fluorescence method with high sensitivity.
✅Strong anti-interference, no frequent calibration.
✅No reagents required, strong anti-interference, no frequent calibration.

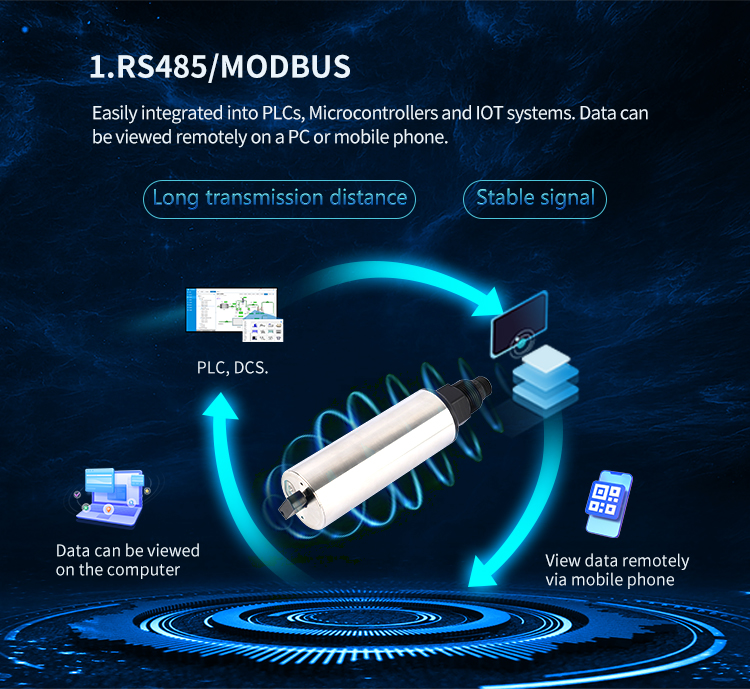

✅RS485 output and 4-20mA output.
✅With high and low limit alarm function.
Technical parameters
| Name | Online oil in water analyzer |
| Principle | Ultraviolet fluorescence method |
| Range | 0-50ppm/0-150ppm |
| Accuracy | ±5%FS |
| Resolution | 0.01ppm |
| Linearity | R2 > 0.99 |
| Warraty | 1 year |
| Working pressure | 1 bar |
| Output Signal | Support RS-485/4-20AM output |
| Operating Temp. | 0-50℃ |

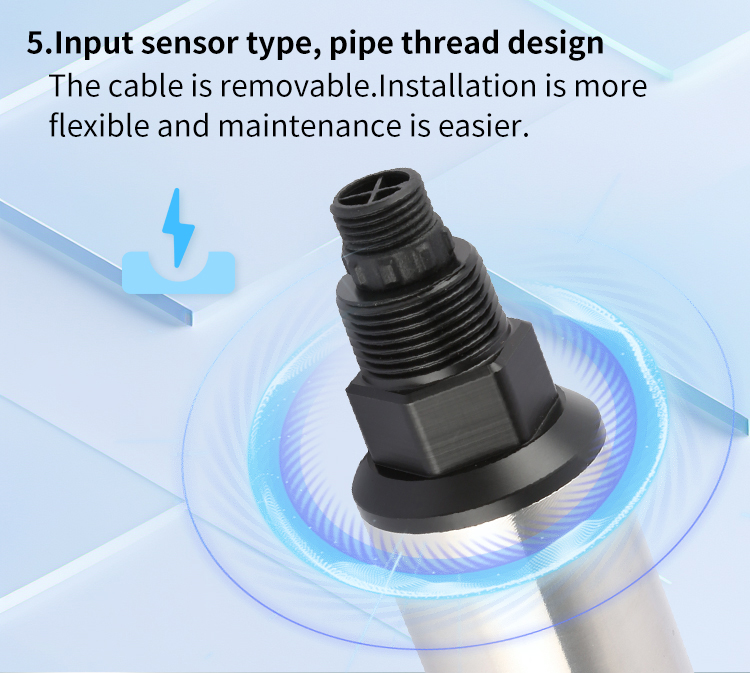

| Assembly | Input Type |
| Power Supply | DC 12V |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | 316L/Titanium alloy |

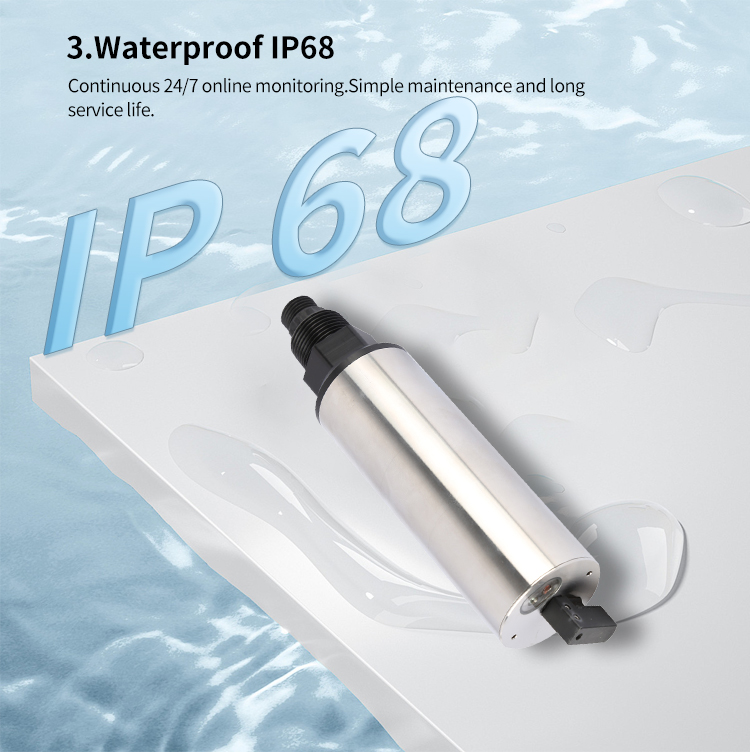

Product Advantages
