Online Nitrate sensor
Key specifications:
✅Range 0-1000mg/L(Customisable)
✅RS485,MODBUS protocol
✅Ion electrode method
✅Easy on-site use
✅Online real-time monitoring
Online nitrate sensor utilizes an advanced electrochemical measurement principle. It produces an electrochemical reaction when in contact with a body of water through the use of specific electrodes. This process produces a change in current or potential that is proportional to the nitrate concentration in the water column.By accurately measuring this current or potential changes, nitrate and nitrogen sensors can be real-time, accurate calculation of the nitrate concentration in the water.It is widely used in waterworks, sewage treatment plants, aquaculture, farmland irrigation and other fields.
Product Features

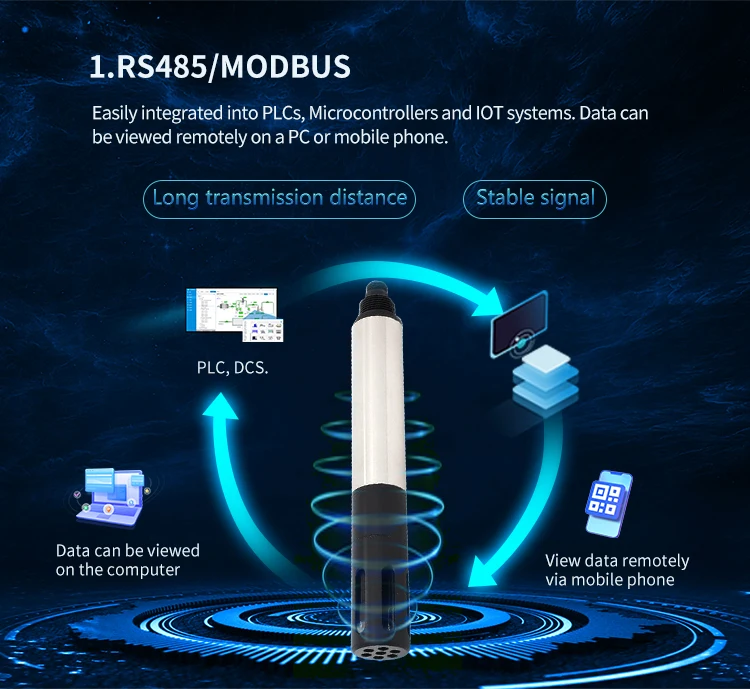

✅Digital sensor, RS485 output, MODBUS protocol.
✅No reagents required, no pollution, more economical and environmentally friendly.
✅Real-time reflection of changes in nitrate concentration in the water body.
✅High measurement accuracy and stability.
✅Strong anti-interference ability and low maintenance cost
Technical parameter
| Name | Online Nitrate sensor |
| Model | YCH265 |
| Principle | Ion electrode method |
| Range | 0-100mg/L or 0-1000mg/L |
| Accuracy | ±5%FS |
| Resolution | 0.01mg/L |

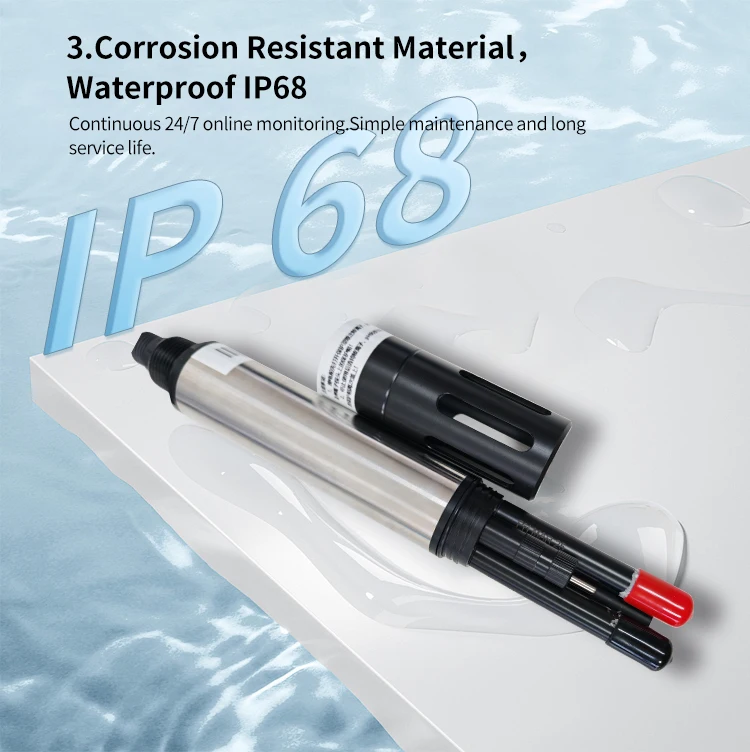

| Protection Level | IP68 |
| Working pressure | 1 bar |
| Output Signal | Support RS-485/Modbus protocol |
| Operating Temp. | 0-50℃ |

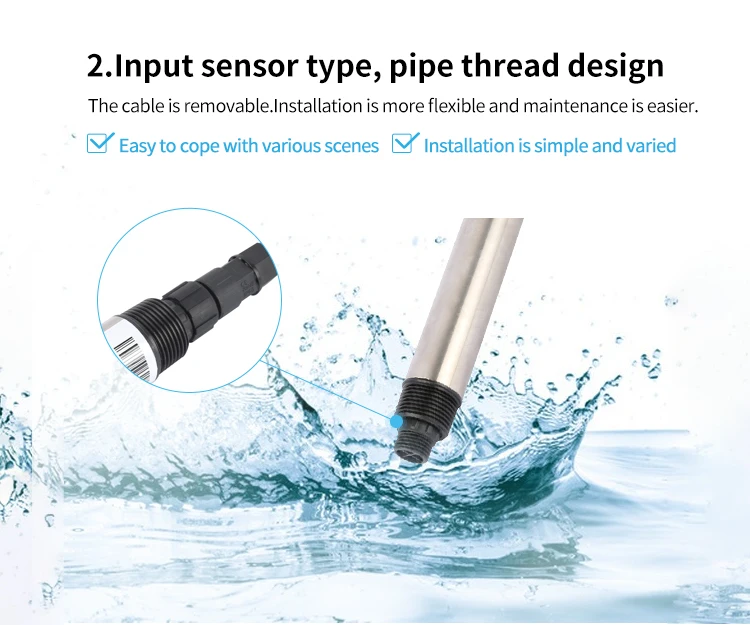

| Installation method | Input Type/flow-through type |
| Power Supply | DC 12V, current < 50mA |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | POM+316L |
| Size | Φ36*265 |
Product Advantages
