Online dissolved oxygen Analyzer
Key Specifications：
✅Range 0-20mg/L(Customisable)
✅RS485/4-20AM output
✅Fluorescence method
✅Plug and play easy to operate
✅High and low limit alarms relay output

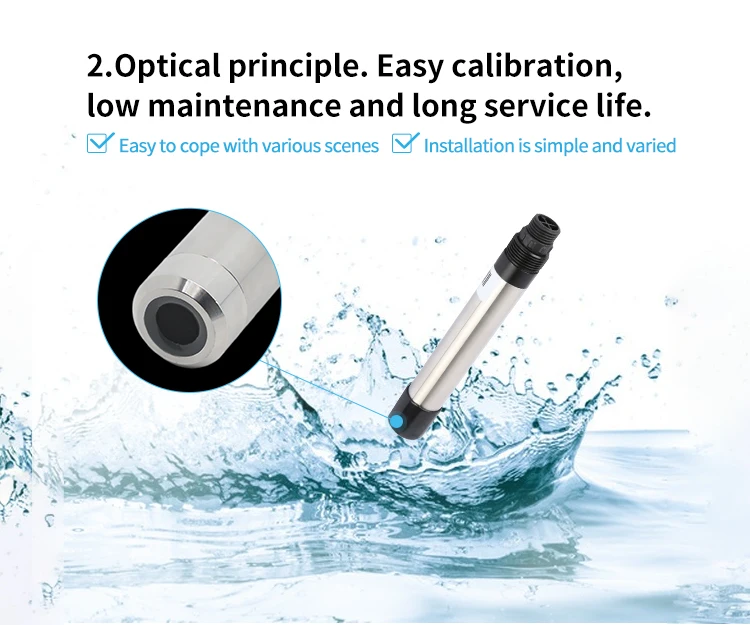

The Fluorescence Dissolved Oxygen Analyser is based on the principle of fluorescence burst to measure the concentration of dissolved oxygen. The working principle is briefly described as follows: a fluorescent substance emits red light after being excited by blue light. As oxygen molecules absorb the energy emitted by the fluorescent substance, the intensity of the red light decreases, i.e. the fluorescence burst phenomenon occurs. By measuring the change in the intensity of the red light and comparing it with the fluorescence burst phenomenon, the concentration of dissolved oxygen can be calculated. Compared with the traditional electrochemical method, the fluorescence method of dissolved oxygen measurement instrument has significant advantages. Firstly, it does not require membranes, electrodes and electrolytes, thus avoiding measurement errors caused by poor maintenance or aging. Secondly, the fluorescence dissolved oxygen meter has higher sensitivity and stability, providing reliable results in low-oxygen environments or when high-precision measurements are required. In addition, the fluorescence method dissolved oxygen meter is characterised by a fast response time and a high degree of automation.
Product Features
✅No electrolyte, strong anti-interference, no need for frequent calibration, no oxygen consumption, no flow requirements.
✅Built-in temperature sensor, automatic temperature compensation.
✅Built-in calibration parameters, accurate calibration before delivery, can be directly installed and used.
✅RS485 output and 4-20mA output. With high and low limit alarm function.
✅Plug and play, easy to operate.
Technical parameters
| Name | Online Dissolved Oxygen Analyzer |
| Model | YCH280 |
| Principle | Fluorescence method |
| Range | 0-20mg/L or 200% saturation |
| Accuracy | ±3%FS |
| Resolution | 0.01mg/L |
| Linearity | R2 > 0.99 |

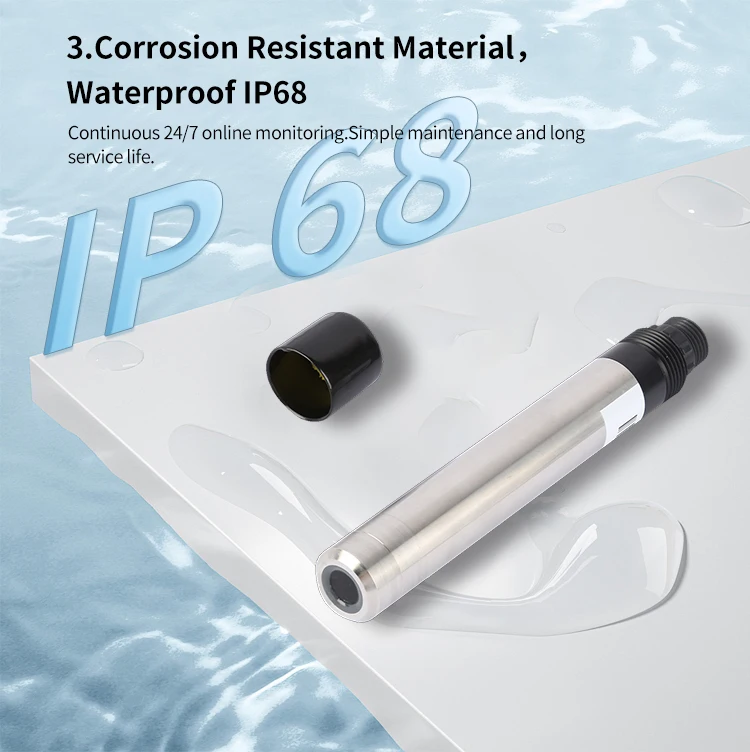

| Protection Level | IP68 |

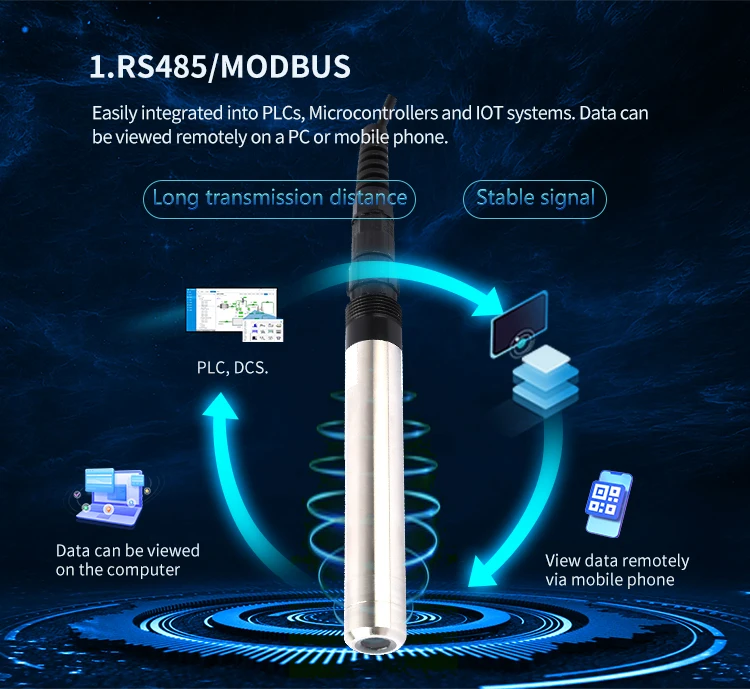

| Output Signal | Support RS-485/Modbus protocol,4-20mA |
| Operating Temp. | 0-50℃ |
| Sensor Installation | Immersion mode |
| Power Supply | AC 220V |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | 316L/Titanium |
| Dimension | φ22*152.7mm |
Product Advantages
