Online Color Sensor
Key specifications:
✅Range 0-500 Hazen(Customisable)
✅RS485,MODBUS protocol
✅Absorptive method
✅Easy on-site use
✅Self-cleaning system
Online color sensor adopts absorption method principle, in line with ISO design standards, customized optical devices, small size, easy to install and maintain, no reagents, no pollution, more economic and environmental protection. The sensor with an automatic cleaning device can automatically compensates for turbidity interference, and has excellent stability even if the water quality is monitored online for a long time.Automatically compensates for turbidity interference and demonstrates excellent testing performance.
Product Features

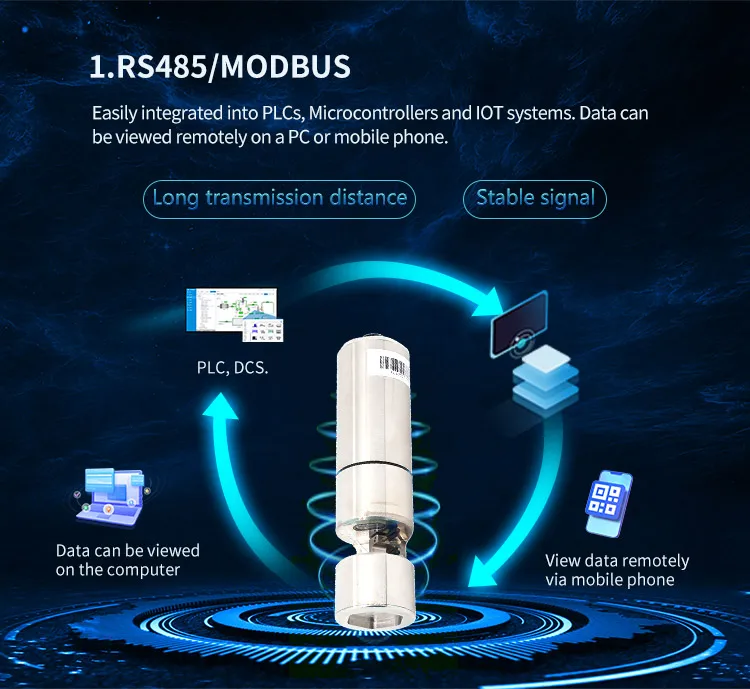

✅Digital sensor,RS485 output, standard MODBUS protocol.
✅Fast and direct online detection, avoiding the need for expensive sampling and laboratory measurements.
✅Automatically compensates for turbidity interference and demonstrates excellent testing performance.

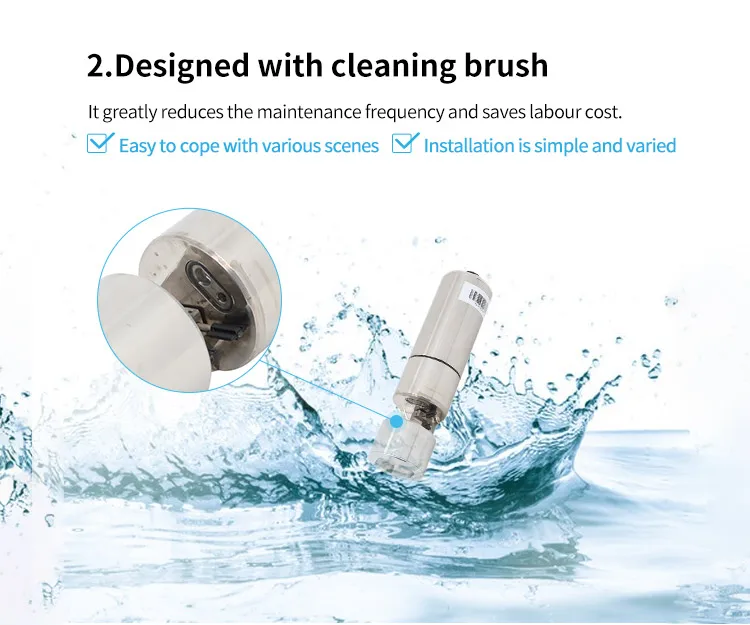

✅With a cleaning brush to prevent microorganisms from attaching and extend the maintenance cycle.
✅Built-in calibration parameters for easy on-site use and secondary calibration.
Technical parameter
| Name | Online Color Sensor |
| Model | YCH515 |
| Principle | Absorptive method |
| Range | 0-500 Hazen |
| Accuracy | ±5%FS |
| Resolution | 0.01Hazen |
| Linearity | R²>0.999 |
| Dimension | φ46mm*189.5mm |

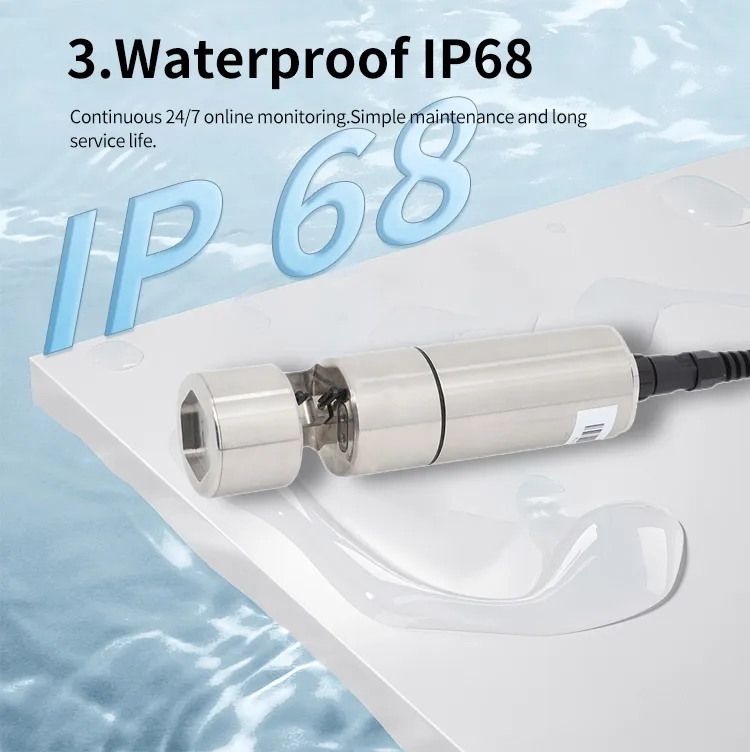

| Protection Level | IP68 |
| Output Signal | Support RS-485/Modbus protocol |
| Operating Temp. | 0-50℃ |
| Installation | Input Type/flow-through type |
| Power Supply | DC 9-24V, current ＞1A |
| Cable Length | 5 meters (default),Customizable |

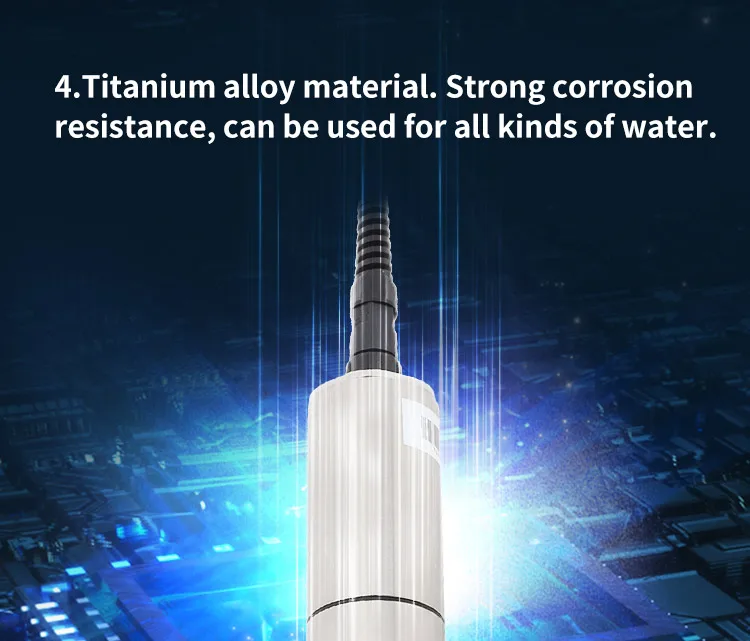

| Housing Material | Titanium alloy |
Product Advantages
