YCH305 self-cleaning COD sensor based on the principle of ultraviolet absorption method, by measuring the absorption degree of these organic compounds to 254nm wavelength ultraviolet light, can accurately measure the content of dissolved organic pollutants in water. One turbidity detection light source is integrated in the interior, and the turbidity interference of the measured water is automatically compensated. With automatic cleaning brush device, even long-term monitoring still has excellent stability.

Product Features

✅No reagents, no pollution, more economical and environmentally friendly.

✅Can measure parameters such as COD, BOD,TSS and temperature.

✅Automatically compensate for turbidity interference.

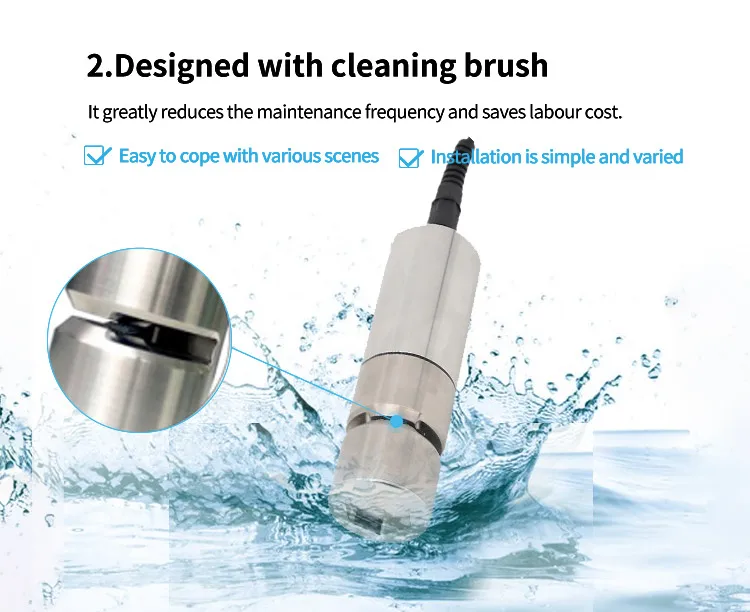

✅With automatic cleaning brush to prevent biological attachment and longer maintenance cycle.

Technical parameter

Name	UV254 COD Sensor(Low range)	UV254 COD Sensor(High range)
Model	YCH305-L	YCH305-H
Principle	Ultraviolet absorption method	Ultraviolet absorption method
Range	0-500mg/L	0-1500mg/L
Accuracy	±5%FS	±5%FS
Resolution	0.01mg/L	0.01mg/L
Linearity	R2 > 0.99	R2 > 0.99

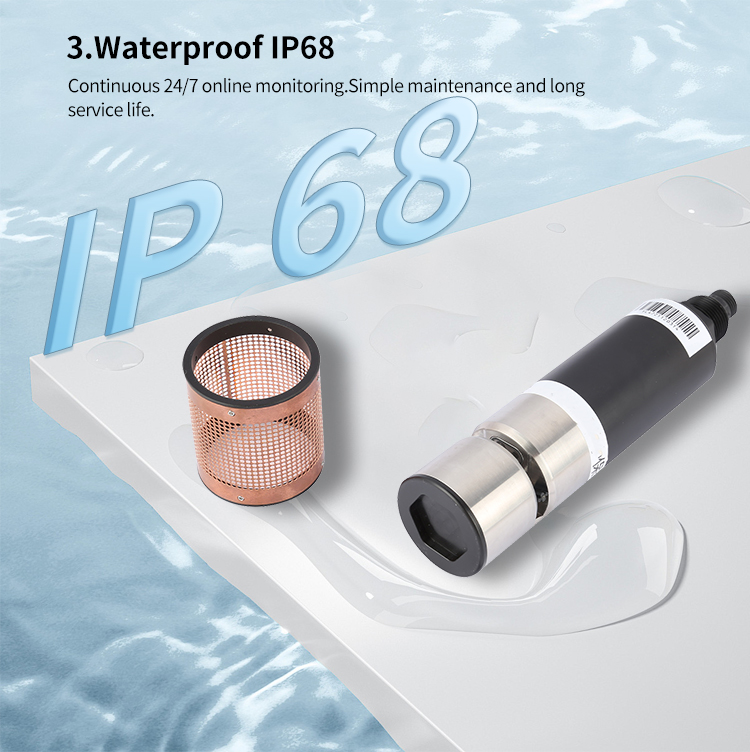

Protection Level	IP68	IP68
Output Signal	Support RS-485/Modbus protocol	Support RS-485/Modbus protocol
Operating Temp.	0-50℃	0-50℃
Assembly	Input Type	Input Type
Power Supply	DC 12V, current < 50mA	DC 12V, current < 50mA
Cable Length	5 meters (default),Customizable	5 meters (default),Customizable
Housing Material	316L/Titanium	316L/Titanium
Dimension	Φ50*179mm	Φ46*227mm

Product Advantages
