Online COD BOD TSS 3 in 1 Sensor
Key specifications:
✅Range COD 0-2000mg/L,BOD 0-1000mg/L,TSS 0-2000mg/L(Customisable)

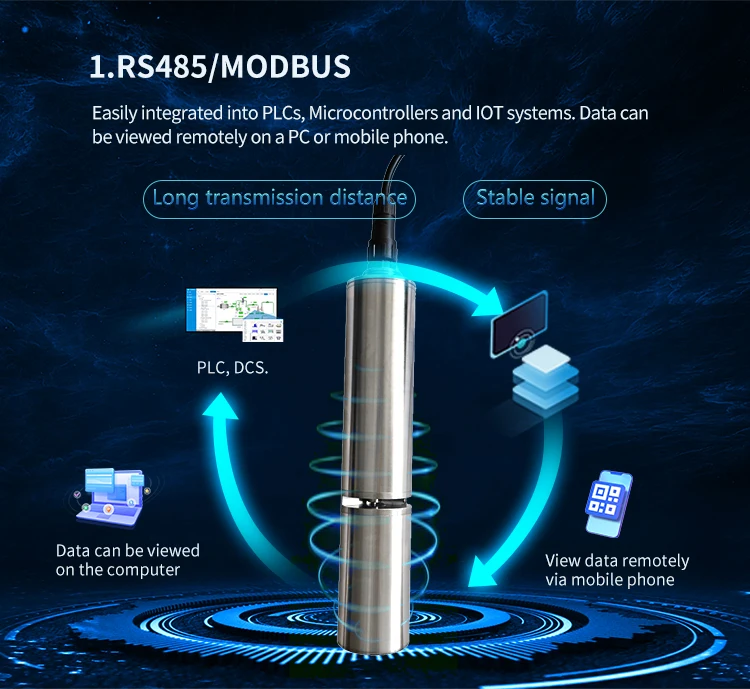

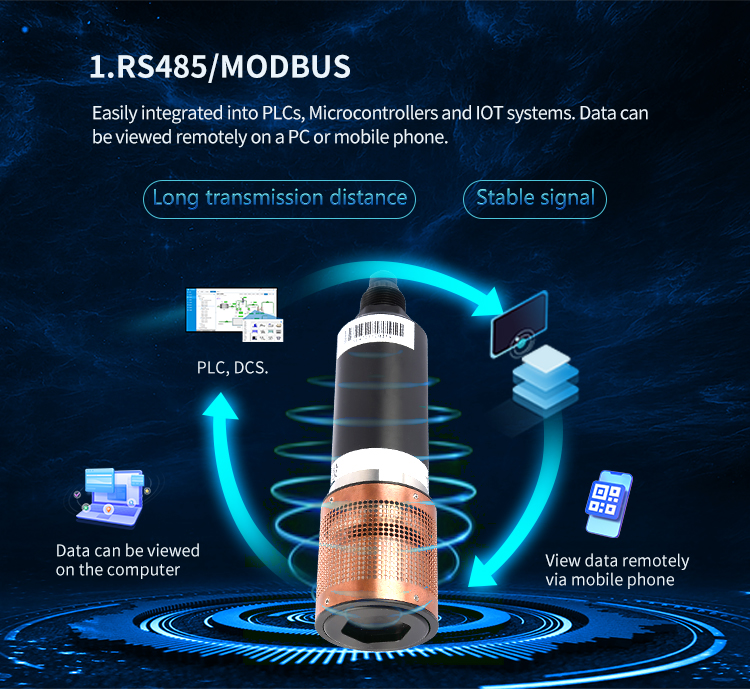

✅RS485,MODBUS protocol
✅Ultraviolet absorption method
✅Easy on-site use
✅Self-cleaning system
Online COD BOD TSS 3 in 1 Analyzer is a device for continuous monitoring of chemical oxygen demand(COD),biological oxygen demand (BOD),Total suspended solids (TSS) in water, and its working principle is based on the UV absorption method. This method utilises the characteristic absorption bands of organic matter in the UV region, and determines the COD value in water by measuring the degree of absorption of UV light at specific wavelengths in the water sample. Specifically, as UV light passes through the water sample, the organic matter in the water absorbs a certain amount of UV light, resulting in a weakening of the intensity of the light transmitted through the water sample. The absorption of light is directly proportional to the concentration of organic matter in solution, so the COD value can be calculated by measuring the degree of light absorption. The UV light from the light source passes through the water sample in the flow cell and is absorbed by the organic matter in the water sample, and the intensity of the transmitted light is measured by a sensor. The sensor converts the light signal into an electrical signal and transmits it to the data processing system. The data processing system calculates the COD value of the water sample according to the preset calibration curve and measurement data, and displays or outputs it in digital form.
Product Features
✅No reagents, no pollution, more economical and environmentally friendly.
✅Can measure parameters such as COD, BOD,TSS and temperature.
✅Automatically compensate for turbidity interference.

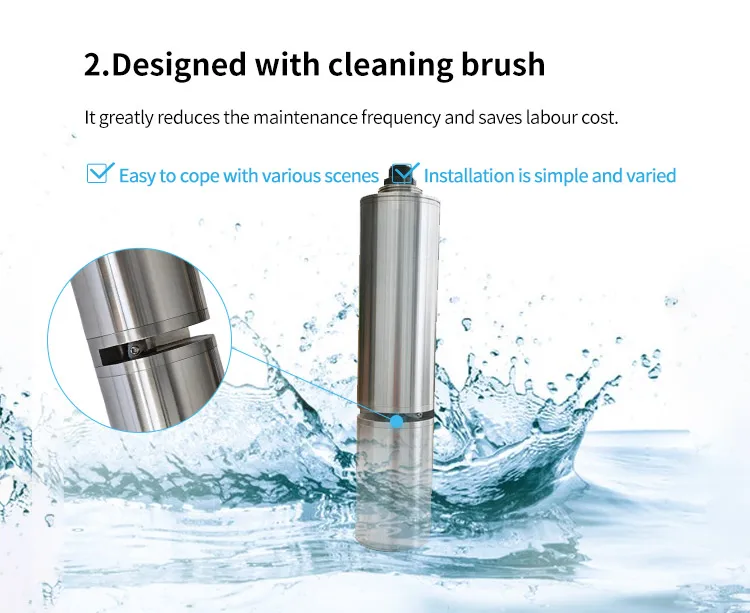

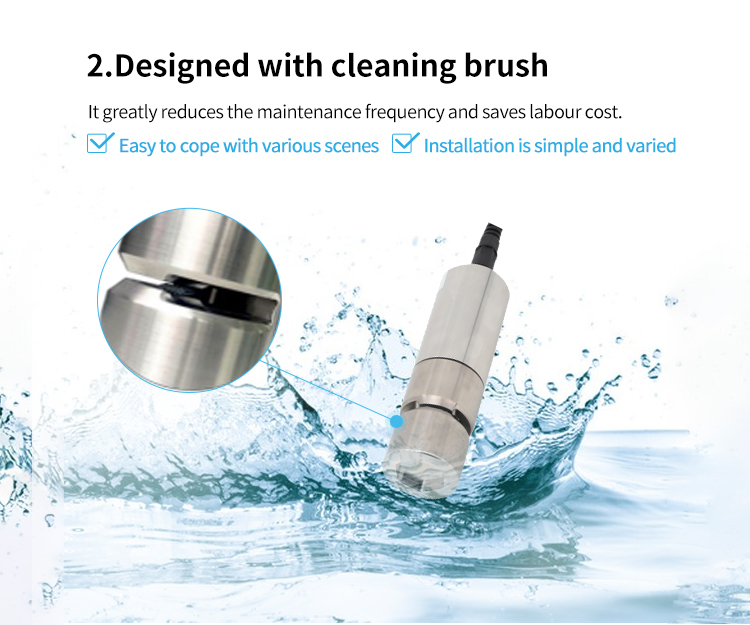

✅With automatic cleaning brush to prevent biological attachment and longer maintenance cycle.
✅RS485 output and 4-20mA output. With high and low limit alarm function.
✅Plug and play, easy to operate.
Technical parameter
| Name | Online COD BOD TSS 3 in 1 Analyzer |
| Model | YCH306 |
| Principle | Ultraviolet absorption method |
| Range | COD 0-1000mg/L,BOD 0-500mg/L,TSS 0-1000mg/L(Support for customisation,Max COD 0-10000mg/L) |
| Accuracy | ±5%FS |
| Resolution | 0.01mg/L |
| Linearity | R2 > 0.99 |

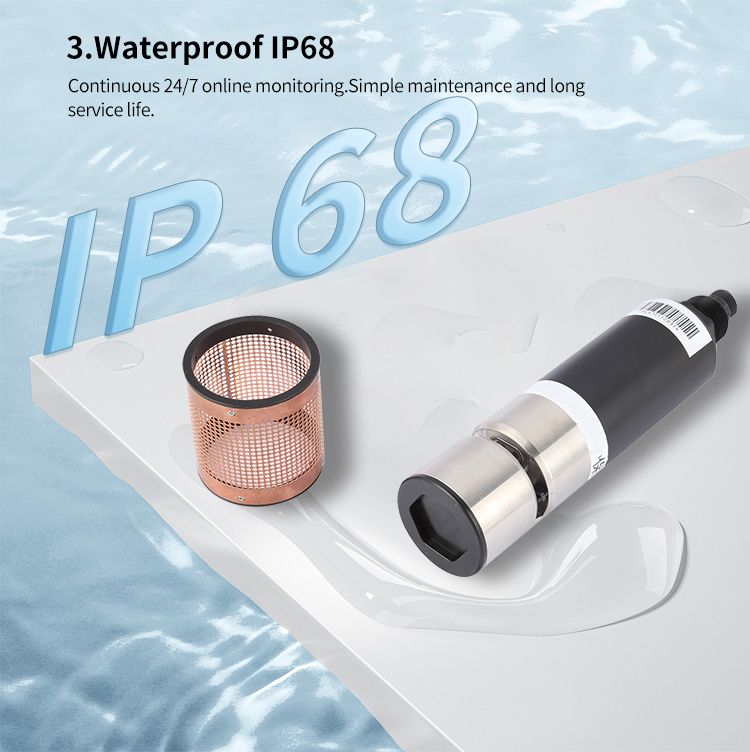

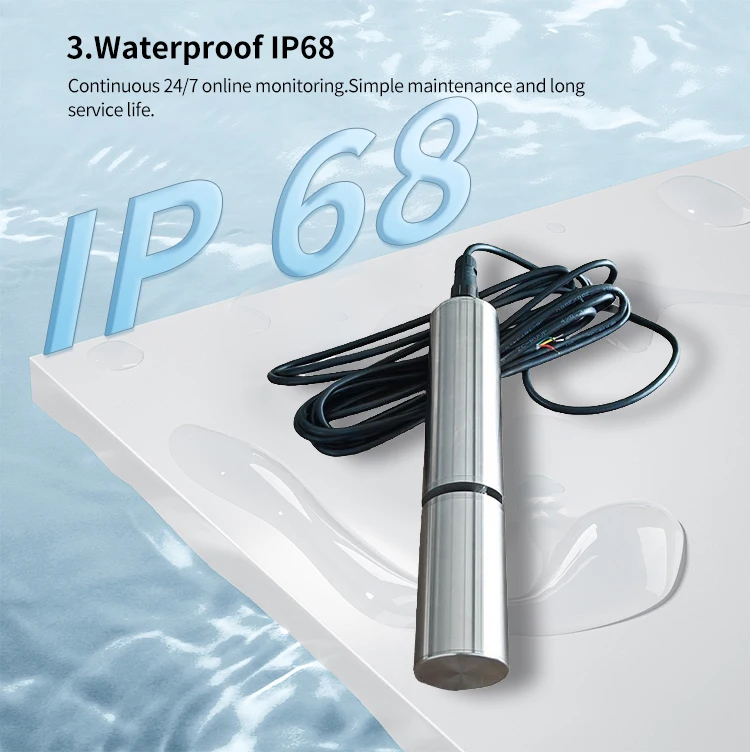

| Protection Level | IP68 |
| Output Signal | Support RS-485/Modbus protocol,4-20mA |
| Operating Temp. | 0-50℃ |
| Sensor Installation | Immersion mode |
| Power Supply | AC 220V |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | 316L/Titanium |
| Dimension | Φ46*227mm |
Product Advantages
