Online CDOM/FDOM sensor
Key specifications:
✅Range 0-400ppb (Customisable)
✅RS485,MODBUS protocol
✅Ultraviolet fluorescence method
✅Easy on-site use
✅Self-cleaning system
Online CDOM (Colored Dissolved Organic Matter) sensor is a fluorescent sensor that detects the fluorescent components of dissolved organic matter under near-ultraviolet light; it is also known as an FDOM (Fluorescent Dissolved Organic Matter) sensor. This method directly measures the fluorescence intensity emitted by CDOM/FDOM when excited by ultraviolet light to determine the relative concentrations of CDOM and FDOM.
Product Features

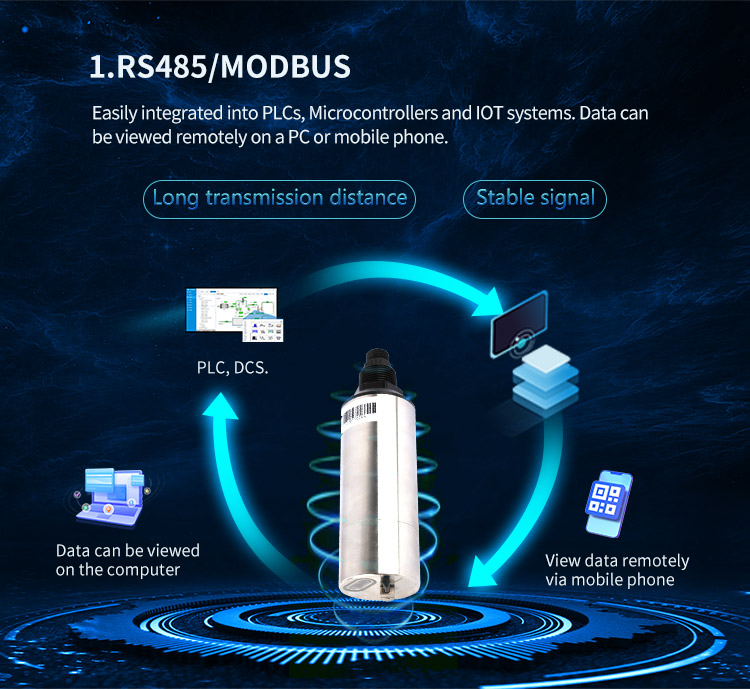

✅Digital sensor, RS485 output, standard MODBUS protocol.
✅Advanced fluorescence sensing technology,strong anti-interference ability, reduce the influence of light and chromaticity.

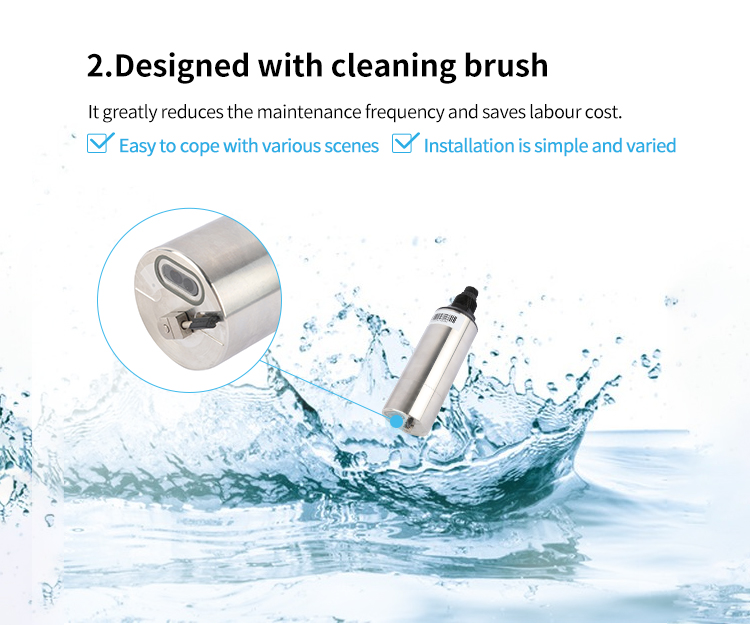

✅Self-cleaning brush to prevent microorganisms from adhering to the sensor and prolong the maintenance cycle.
✅Built-in calibration parameters, convenient for field use and secondary calibration
Technical parameter
| Name | Self-cleaning CDOM/FDOM Sensor |
| Model | YCH535 |
| Principle | Optical method(Fluorescence) |
| Range | 0-400ppb |
| Linearity | R² > 0.999 (serial dilution of standard solution) |
| Resolution | 0.01ppb |
| Units of measurement | ppb,QSU |
| Dimension | Φ45*190.8mm |
| Working pressure | 3 bar |
| Output Signal | Support RS-485/Modbus protocol |
| Operating Temp. | 0-50℃ |
| Assembly | Submersible/in-line installation (3/4-inch NPT thread) |
| Power Supply | DC 12V, current < 50mA |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | SS316/Titanium alloy |
Product Advantages
