Oil in water sensor
Key specifications:
✅Range 0-150ppm
✅RS485,MODBUS protocol
✅Ultraviolet fluorescence method
✅Easy on-site use

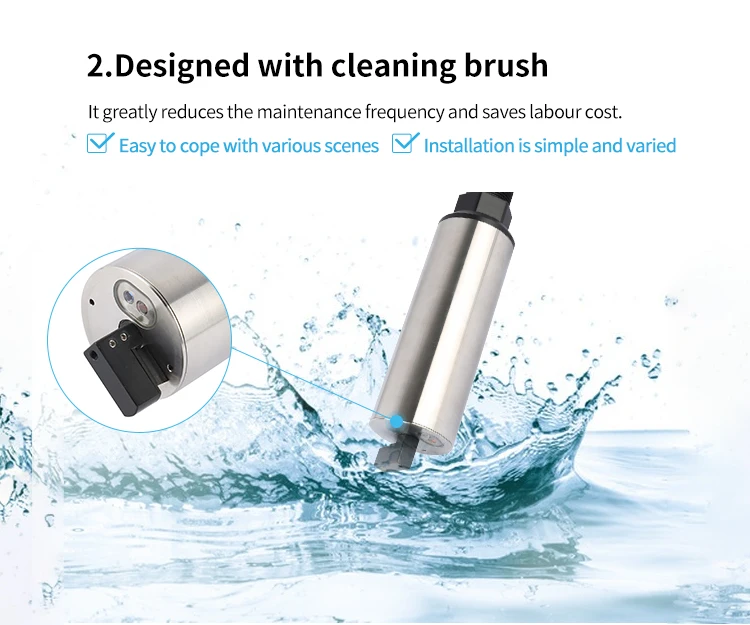

✅Self-cleaning system
Online oil in water sensor adopts ultraviolet fluorescence method principle,which is more efficient, quick and good repeatability. The sensor provides better repeatability and stability to detect dissolved and emulsifiable oils.The sensor with an automatic cleaning brush can eliminate air bubbles and reduce the impact of contamination on the measurement for a longer maintenance cycle and excellent stability.Widely used in industrial wastewater field, oil leakage, petrochemical, marine and environmental protection field.
Product Features

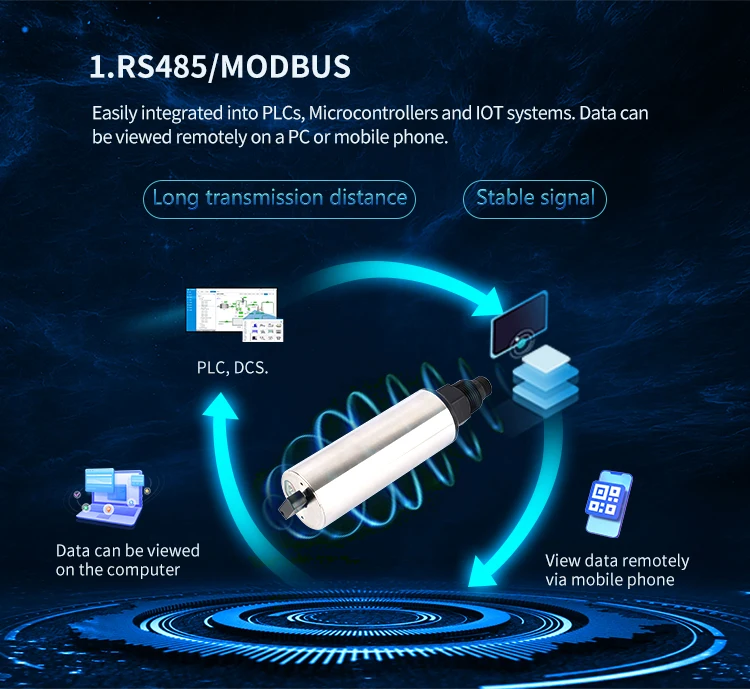

✅Digital sensor, RS485 output, standard MODBUS protocol.
✅Online oil-in-water sensor using ultraviolet fluorescence method with high sensitivity.
✅No reagents required, strong anti-interference, no frequent calibration.
✅Highly resistant to interference, natural light and turbidity have little effect on accuracy.
Technical parameter
| Name | Self-cleaning Oil in water Sensor |
| Model | YCH300 |
| Principle | Ultraviolet fluorescence method |
| Range | 0-50ppm/0-150ppm |
| Accuracy | ±5%FS |
| Resolution | 0.01ppm |
| Linearity | R2 > 0.99 |
| Dimension | Φ45*190.8mm |
| Working pressure | 3 bar |
| Output Signal | Support RS-485/Modbus protocol |
| Operating Temp. | 0-50℃ |
| Assembly | Input Type |
| Power Supply | DC 12V |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | 316L/Tatinium alloy |
Product Advantages
