Online conductivity sensor adopts advanced four-electrode technology with RS485 digital interface,supporting MODBUS protocol. In comparison to traditional two-electrode sensors, this sensor offers higher accuracy, wider measuring range, and better stability. As an important measuring instrument, online conductivity sensor plays an indispensable role in chemical industry, environmental protection, water treatment, food industry and other fields. It provides powerful technical support for industrial production, environmental monitoring, water quality analysis and other fields by monitoring the conductivity of the solution in real time.

Product Features

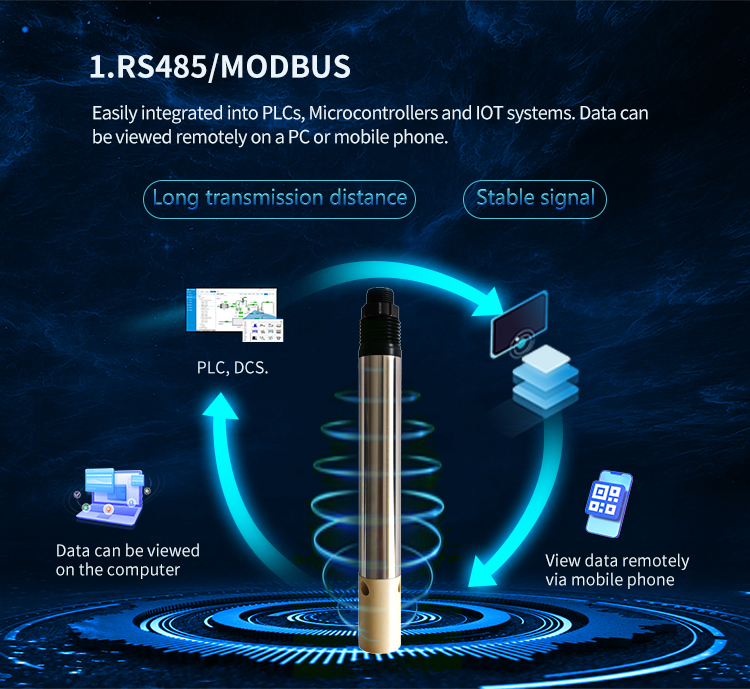

✅Digital sensor, RS-485 output, MODBUS support;

✅Wide measuring range, automatic switching measuring range;

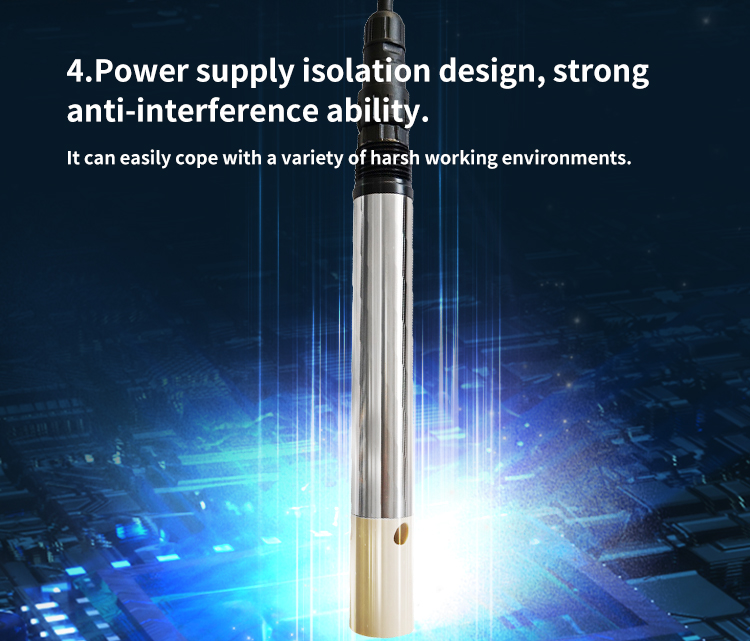

✅Strong anti-interference ability, automatic temperature compensation;

✅Four electrode technology, anti-polarization;

Technical parameter

Name	Online Conductivity Sensor
Model	YCH246
Principle	Four-electrodes
Range	0-5mS/cm or 0-300mS/cm
Accuracy	±3%FS
Resolution	0.01 mS/cm
Dimension	φ22*165mm

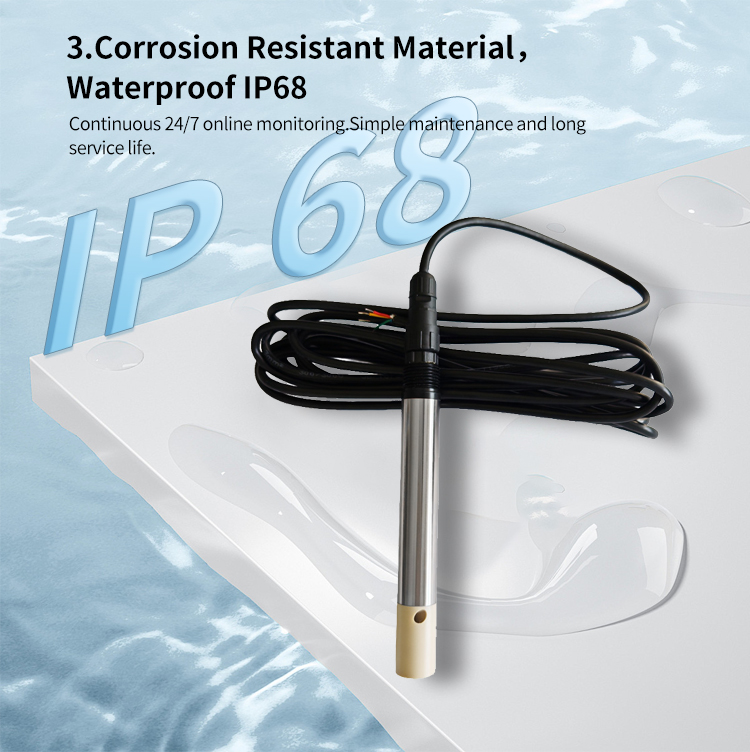

Protection Level	IP68
Working pressure	3 bar
Output Signal	Support RS-485/Modbus protocol
Operating Temp.	0-50℃

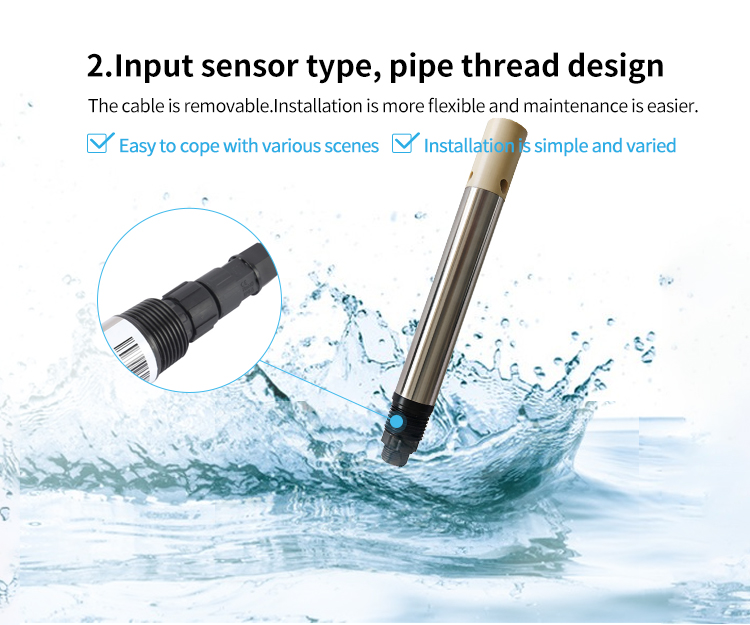

Assembly	Input Type/flow-through type
Power Supply	DC 12V, current < 30mA
Cable Length	5 meters (default),Customizable
Housing Material	SS316+PEEK

Product Advantages
