Blue-green algae sensor
Key specifications:
✅Range 0-1000mg/L(Customisable)
✅RS485,MODBUS protocol
✅Ultraviolet fluorescence method
✅Easy on-site use
✅Self-cleaning system
Online Blue-green algae sensor adopts the principle of fluorescence method, which is more efficient and fast than the traditional manual counting method. The sensor provides better repeatability and stability. Self cleaning brush can eliminate bubbles and reduce the impact of contamination on the measurement, so that the maintenance cycle is longer.The sensor can be installed directly in the water. Fast response and good stability.
Product Features

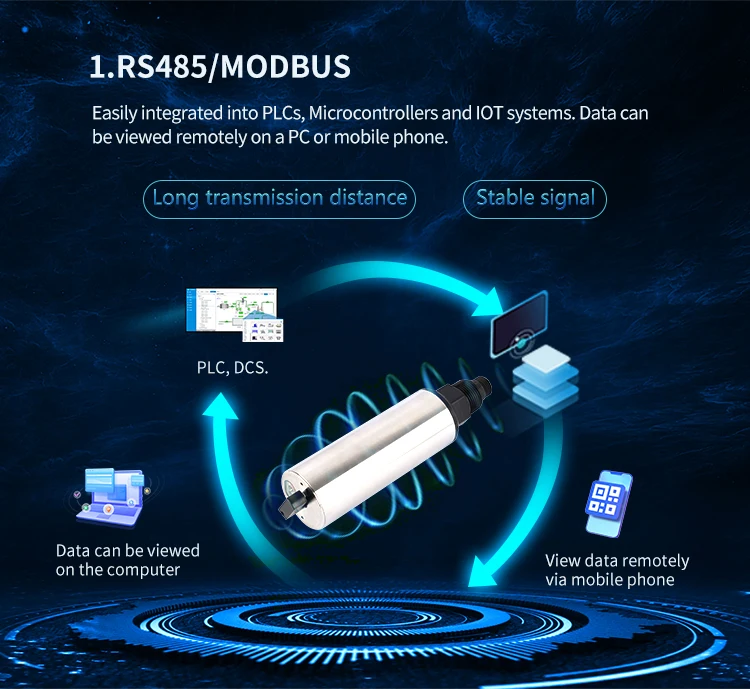

✅Digital sensor, RS485 output, MODBUS protocol.
✅Advanced fluorescence sensing technology is more convenient.
✅No electrolyte required, fast detection, avoiding the impact of shelving water samples.

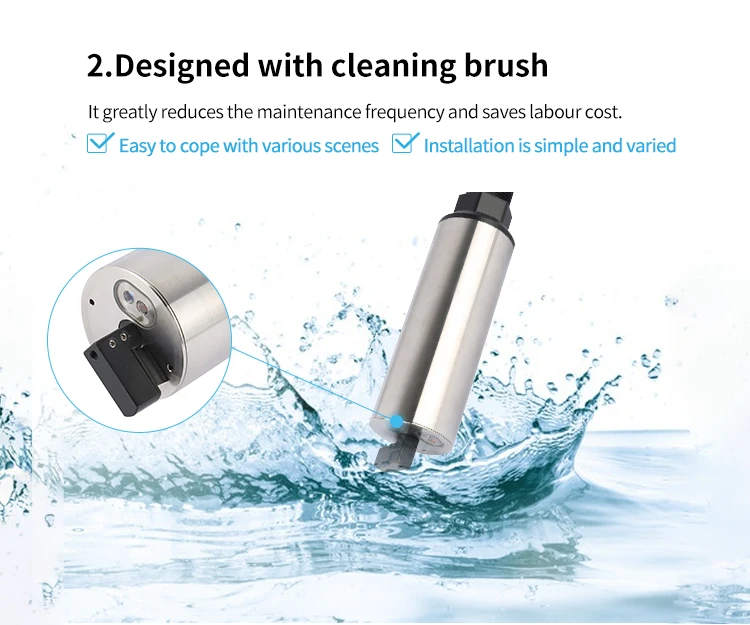

✅With a cleaning brush to prevent microorganisms from attaching and extend the maintenance cycle.
✅Direct measurement, easier to operate than traditional manual counting methods.
Technical parameter
| Name | Self-cleaning Blue Green Algae Sensor |
| Model | YCH615 |
| Principle | Optical method(Fluorescence) |
| Range | 0-270,000 cells/mL |
| Accuracy | ±5%FS |
| Resolution | 1 cell |
| Linearity | R2 > 0.99 |
| Dimension | φ38*165 |
| Working pressure | 1 bar |
| Output Signal | Support RS-485/Modbus protocol |
| Operating Temp. | 0-50℃ |
| Assembly | Input Type |
| Power Supply | DC 12V, current < 50mA |
| Cable Length | 5 meters (default),Customizable |
| Housing Material | POM/SS316/Tatinium alloy |
Product Advantages
